Lithonia Lighting Lithonia Lighting LE S W 1 G EL N SD


Description

Industry Description

Signature die-cast aluminum exits with LED lamps, Stencil Face, White, Single face, Green, Emergency, Maintenance free nickel-cadmium battery, Emergency operation with self-diagnostic, SKU - 220E9R

Modified Industry Description

120/277V Single Face Emergency Exit Sign With LED LA RED LETTERS MAINTENANCE FREE SELF DIAGNOSTIC EMERG OPERATION

AD Description

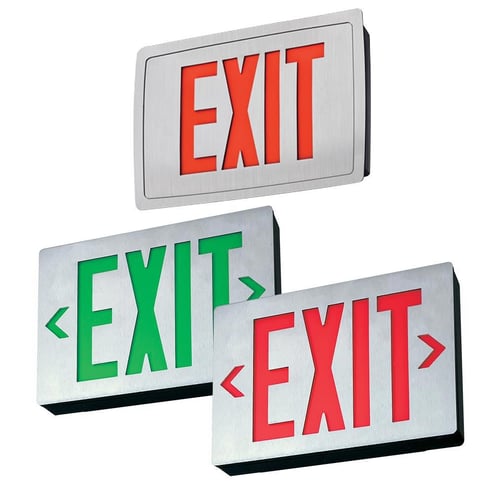

Lithonia Lighting® LE S W 1 G EL N SD Single Stencil Face Emergency Exit Sign, LED Lamp, 1.5/1.7 W Fixture, 120 to 277 VAC, Brushed Housing, EXIT Legend

Specifications

Amperage Rating
0.06/0.07
Application
Emergency and Safety
Average_Life
10
Background_Color
White
Battery_Runtime
90 min
Brand Name
Lithonia Lighting
Color
White
Country of Origin
MX
Environmental_Conditions
Indoor,Outdoor
Finish
Matte
Fixture_Type
Exit Sign
Housing_Color
White
Lamp_Included
True
Lamp_Type
LED
Legend
EXIT
Letter_Color
green
Material
Aluminum
Mounting
Surface, Wall
Power_Source
NiCd Battery
Special Features

  • 25 deg C temperature range rating
  • Battery and electronics located inside housing
  • Battery powered, self-diagnostics
  • Clear lacquer finish on brushed face inhibits fingerprints and other surface contaminants
  • Fine grain brushed aluminum faceplate with matte black electrostatic polymeric trim
  • Fully overlapping light seal prevents light leaks
  • Green letter color
  • Hinged faceplate and spring latches for easy lamp compartment access
  • Lamp is constructed using new LED technology
  • Low voltage disconnect prevents excessively deep discharge that can permanently damage the battery
  • Precision-molded, die cast aluminum construction - ultra-slim, compact housing
  • Provides perfectly uniform illumination to meet 3/4 in letter stroke required by code
  • Sealed, maintenance free nickel-cadmium battery delivers 90 min rated capacity
  • Single-point microcomputer control for all electronic features
  • Solid state electronic elements to eliminate risk of electromechanical failures
  • Stencil with canopy single, right arrow and left arrow
  • The typical life of the exit LED lamp is 10 years, based on continuous operation
  • Two-state constant current charger maximizes battery life and automatically recharges after battery discharge
  • Unique LED lamp platform accommodates both single face and double face exits
  • Universal directional chevron knockouts are completely concealed and easily removed
Standard
NFPA 101, UL
Sub_Brand
Lithonia Lighting
Type
Single Stencil Face
Voltage Rating
120 to 277
Wattage
2
