Panduit Panduit LCAS6-14-L

Name: Panduit LCAS6-14-L
Brand: Panduit
SKU: 497484
Price: 322.61 USD
Availability: InStock

Panduit LCAS6-14-L

Kirby Risk #: 497484

UPC: 07498322522, 074983225224, 30074983225225, 00074983225224

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: Panduit

Description

Industry Description

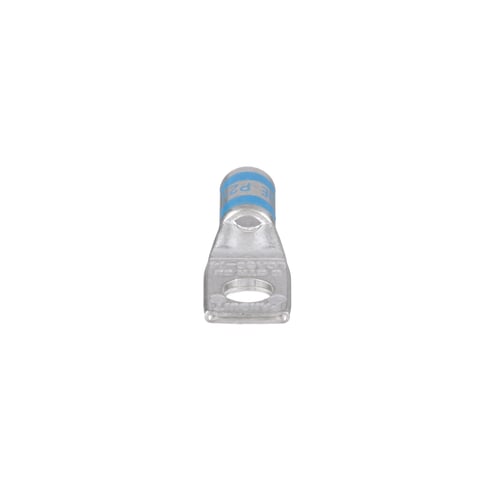

One-hole, short barrel with window lug, #6 AWG wire, 1/4 stud hole.

Modified Industry Description

6 AWG 1/4 IN SHORT BARREL 1 HOLE CU COMP LUG

AD Description

Panduit® Pan-Lug™ LCAS6-14-L 1-Hole Compression Lug, 6 AWG Stranded Copper Conductor, Die Code: P24, 1/4 in Stud, Copper

Brand Name	Panduit
Color	Blue
Conductor Material	Copper
Conductor Size	6
Country of Origin	MEX
Material	Copper
Mounting	9/16
Number_Of_Holes	1
Package_Quantity	1
Size	#6 Code
Special Features	Color coded bands for proper die selection and crimp placement Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V For use with flexible copper conductors Inspection window to visually assure full conductor insertion Short barrel for limited space applications Tin plated to inhibit corrosion
Standard	C22.2 No. 65-13, 486A-486B File #E52164
Stud_Size	1/4
Sub_Brand	Panduit
Temperature_Rating	90
Type	1-Hole
Voltage Rating	35
