Hubbell Hubbell HBL520C7W

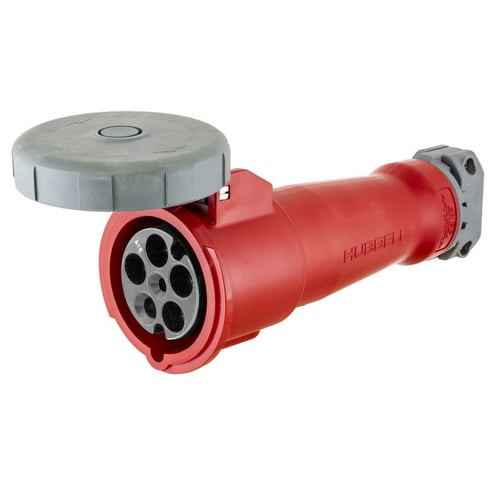

Hubbell HBL520C7W
Kirby Risk #: 497291
UPC: 78358540530, 783585405308, 00783585405308
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description
Hubbell Wiring Device Kellems, Heavy Duty Products, IEC Pin and SleeveDevices, Industrial Grade, Female, Connector Body, 20A 3-Phase Wye277/480V AC, 4-Pole 5-Wire Grounding, Terminal Screws, Red, Watertight
Modified Industry Description
20A 277/480V 4 POLE 5 WIRE FEMALE SLEEVE CONNECTOR BODY
AD Description
Wiring Device-Kellems HBL520C7W 3-Phase Female Heavy Duty Standard Watertight Pin and Sleeve Connector, 277/480 VAC, 20 A, 4 Poles, 5 Wires, Red
Specifications
| Amperage Rating |
20
|
|---|---|
| Application |
High Ampacity Connections
|
| Brand Name |
Hubbell
|
| Color |
Red
|
| Conductor Range |
#14AWG - #10AWG
|
| Connection |
Pressure Screw Terminal
|
| Country of Origin |
US
|
| Environmental_Conditions |
Water Tight
|
| Insulation |
Insulated Body
|
| Material |
Composite
|
| Mounting |
Cord Mounted
|
| NEMA_Rating |
Non-NEMA
|
| Number Of Conductors |
5-Wire Grounding
|
| Number_Of_Poles |
4
|
| Size |
Standard
|
| Special Features |
|
| Standard |
UL 498, IEC 309-1 and 309-2
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Temperature_Rating |
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
|
| Type |
Standard
|
| Voltage Rating |
277/480
|
