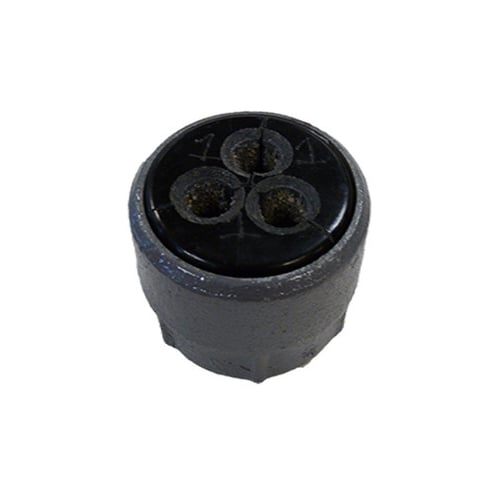

O-Z/Gedney O-Z/Gedney R-5001-1


Description

Industry Description

Cable Support, Type Multiple Segment Plug, Body Type Tapered, Conduit Type Rigid/IMC/EMT, Conduit Position Vertical, Conductor Size 18 to 8 AWG, 6 to 1/0 AWG, 2/0 to 4/0 AWG, 4/0 AWG to 750 KCMIL (Aluminum/Copper Clad Aluminum/Copper), Conduit Size 5 Inch, Cable Type Non-Armored, Number of Conductors 1 to 4 (Same Size), Size 6-3/4 Inch Dia x 4-3/8 Inch H, Material Hot Dip Galvanized Malleable/Ductile Iron, Application Indoor, Approval UL 514B, CSA C22.2, Applicable Standard NEC 300-19, With pOZi-grip R-Style Wedging Plug

Modified Industry Description

5 IN Cable Support

Specifications

Application
ONE or more wires - Indoors - at all voltages
Brand Name
O-Z/Gedney
Country of Origin
US
Finish
Hot Dipped Galvanized
Material
Ductile Iron/Malleable Iron
Mounting_Type
Surface
Special Features

  • Body only can be ordered separately, for installation prior to wire pulling
  • For threadless rigid conduit, threadless IMC, or EMT, the body can be attached to the male threads of a set screw or compression connector
  • If mounting on a non-metallic/non-grounded conduit, a LayIn-Lug™ grounding lug should be mounted on cable support body
  • Plug only can be ordered later, once wires are in place
  • The pOZi-grip wedging plug exerts uniform pressure around the cable, providing holding force in excess of that required by code without deforming cable insulation
  • Threaded for rigid conduit, IMC and EMT with pOZi-grip R-style wedging plug
  • Use with all types of insulations at all voltages
Sub_Brand
O-Z/Gedney
Type
Multiple Segment Plug
