Appleton Appleton 4012


Description

Industry Description

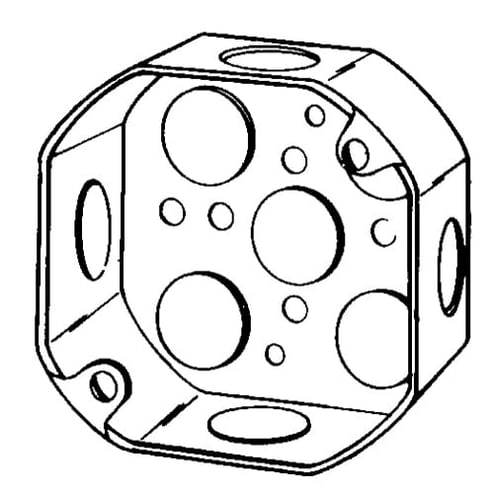

4" Octagon Boxes, Conduit Knockouts: Sides: (4) 1/2", Bottom: (5) 1/2", Material:Steel, Size:4 X 4 X 1.5IN, Cubic Capacity:15.5CI, UL Standard: 514A, UL Listed: E2527

Modified Industry Description

4 X 4 X 1 1/2 IN OCTAGON BOX, 1/2IN KO, STEEL

Specifications

Brand Name
Appleton
Capacity
15.5
Country of Origin
US
Cubic_Capacity
15.5CU-IN
Diameter
4
Finish
Pre-Galvanized
Knockouts
1/2
Material
Steel
Shape
Octagon
Size
4
Special Features

  • (5) 1/2 in bottom, (4) 1/2 in side knockouts
  • Boxes with concentric or eccentric knockouts are suitable for bonding without any additional bonding means where used in circuits above or below 250 VAC
  • Groundskeeper raised ground feature on boss inside box provides one or two #10-32 tapped hole, allowing a 3/8 in long green ground screw to be threaded into box without contacting mounting surface
  • Other boxes provided with flat ground tapped hole, except plenum boxes
  • Single and double gang metallic outlet and switch boxes are acceptable for use in two hour fire rated walls
  • Unless otherwise noted all concentric or eccentric knockouts are 1/2 to 3/4 in combinations
Standard
UL Standard 514A; UL Listed E2527; Nema OS-1
Sub_Brand
Appleton
Type
Octagonal Box
