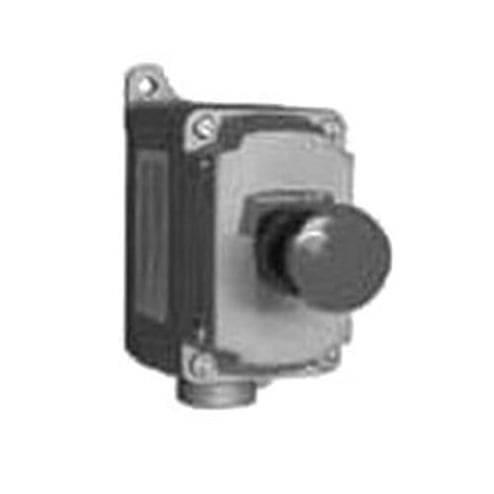

Appleton Appleton EFDB150UM1

Industry Description

EFDB Series 1-Gang 1 Circuit Push Button Switch, Action: Maintained, Contact Configuration: 1 NO/1 NC, Contact Rating: 10 AMP At 600 VAC, Actuator: Red Mushroom Head, Enclosure: NEMA 3, 7CD, 9EFG, Mounting: Surface Mount With 1 IN Dead-End Hub, Material: Malleable Iron Body With Copperfree (4/10 Of 1 PCT Maximum) Aluminum Cover, Finish: Triple-Coat (Zinc Electroplate, Chromate And Epoxy Powder Coat), Height: 4.63 IN, Width: 3 IN, Depth: 4.69 IN, Legend: Start/Stop, Standard: UL 508, UL 698, UL 1203, E10449, E81751 UL Listed, Class I, Division 1, Groups, C, DClass I, Division 2, Groups B, C, D, Class II, Division 1 And 2, Groups E, F, G And Class III, For Remote Control Of Motors

Modified Industry Description

DEAD END PUSH BUTTON STATION NEMA 3 10A 600V

AD Description

Appleton® EFDB150UM1 EFDB 1-Gang 1-Circuit Dead End Pushbutton Switch Station, 600 VAC, 10 A, 1NO-1NC Contact, NEMA 3 NEMA Rating

Vendor Description

Appleton® explosionproof, dust-ignitionproof EFDB Series factory sealed control stations confine the arcing of devices within the enclosure, preventing ignition of ignitable atmospheres during control operation of motors and other equipment. A variety of push buttons and selector switches are available for use in conjunction with contactors or magnetic starters for remote control of motors. They provide circuit control and/or selection. Pilot lights are available to provide visual assurance that an electrical function is being performed at a remote or local location. EFDB Series control stations are designed for use in classified areas where flammable vapors, gases or highly combustible dusts are present.
