Appleton Appleton STB-45125


Description

Industry Description

STB Series 45 DEG Liquidtight Connector With Insulated Throat, Size: 1-1/4 IN, Connection: Threaded X Compression, Material: Malleable Iron, Finish: Chromate, Epoxy Powder Coat/Zinc Electroplated, Thread Length: 0.63 IN, Standard: Class

Modified Industry Description

1-1/4 45D INS L/T CON

AD Description

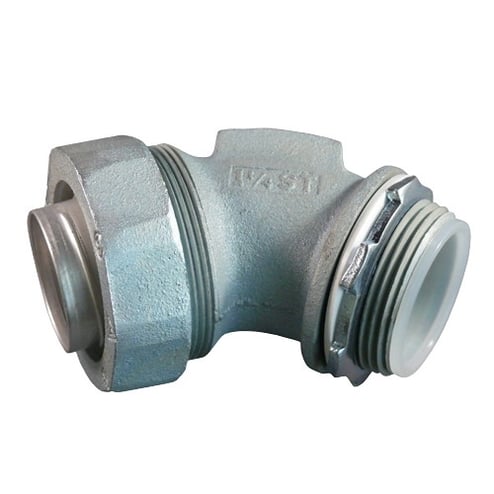

Appleton® STB-45125 Liquidtight Oiltight Raintight Conduit Connector With Insulated Throat, 1-1/4 in Trade, 45 deg, Malleable Iron, Triple Coated

Specifications

Application
For Liquidtight Flexible Metal Conduit
Brand Name
Appleton
Connection
Threaded X Compression
Country of Origin
MX
Finish
Triple Coated
Insulation
Insulated
Material
Malleable Iron
Special Features

  • Chromate/epoxy powder coated/zinc electroplated finish
  • Compact design with small turning radius
  • Ferrule also provides maximum surface contact for better sealing and a continuous, permanent, positive metal to metal ground
  • Full, machined tapered threads (NPT)
  • Polypropylene sealing ring with locknut standard
  • Seals out oil, water, dust, dirt and fumes
  • Suitable for wet locations
  • Unique long ferrule with more pronounced threads provides over four times UL pull out requirements
Standard
Class I, Division 2; UL 514B, E14814, CSA C22.2 No. 18.3, 065178, NEMA FB-1
Sub_Brand
Appleton
Trade_Size
1-1/4
Type
Liquidtight Oiltight Raintight
