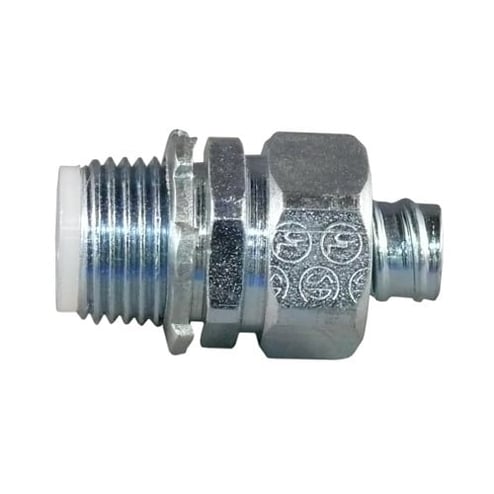

Appleton Appleton STB-38


Description

Industry Description

STB Series Straight Liquidtight Connector With Insulated Throat, Size: 3/8 IN Flex, 1/2 IN Hub, Connection: Threaded X Compression, Material: Steel, Finish: Zinc Electroplate, Dimensions: 1.44 IN Length X 1.13 IN Height, Thread Length: 0.6

Modified Industry Description

3/8 IN STRAIGHT LIQUIDTIGHT CONNECTOR W/ INSULATED THROAT

AD Description

Appleton® STB-38 Liquidtight Oiltight Raintight Conduit Connector With Insulated Throat, 3/8 in Flex x 1/2 in Hub Trade, Straight, Steel, Zinc Electroplated

Specifications

Application
For Liquidtight Flexible Metal Conduit
Brand Name
Appleton
Connection
Threaded X Compression
Country of Origin
MX
Finish
Zinc Electroplated
Insulation
Insulated
Material
Steel
Special Features

  • Compact design with small turning radius
  • Ferrule also provides maximum surface contact for better sealing and a continuous, permanent, positive metal to metal ground
  • Full, machined tapered threads (NPT)
  • Polypropylene sealing ring with locknut standard
  • Seals out oil, water, dust, dirt and fumes
  • Suitable for wet locations
  • Unique long ferrule with more pronounced threads provides over four times UL pull out requirements
Standard
Class I, Division 2; UL 514B, E14814, CSA C22.2 No. 18.3, 065178, NEMA FB-1
Sub_Brand
Appleton
Trade_Size
3/8
Type
Liquidtight Oiltight Raintight
