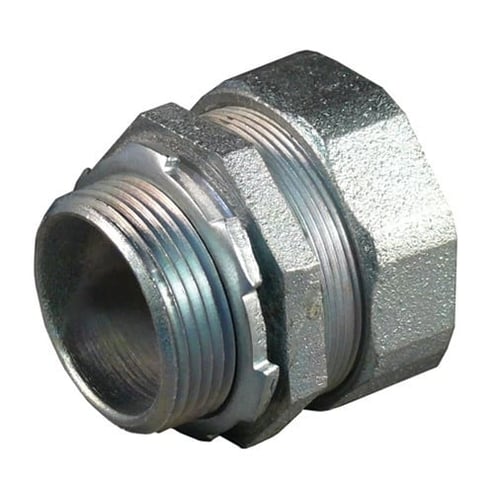

Appleton Appleton ST-200


Description

Industry Description

ST Series Straight Liquidtight Connector With Plain Throat, Size: 2 IN, Connection: Threaded X Compression, Material: Malleable Iron, Finish: Chromate, Epoxy Powder Coat/Zinc Electroplated, Dimensions: 2.5 IN Length X 3.19 IN Height, Threa

Modified Industry Description

2 IN STRAIGHT NON INSULATED LIQUIDTIGHT CONNECTOR W/ PLAIN THROAT

AD Description

Appleton® ST-200 Liquidtight Oiltight Raintight Conduit Connector With Plain Throat, 2 in Trade, Straight, Malleable Iron, Triple Coated

Specifications

Application
For Liquidtight Flexible Metal Conduit
Brand Name
Appleton
Connection
Threaded X Compression
Country of Origin
MX
Finish
Triple Coated
Insulation
Non Insulated
Material
Malleable Iron
Special Features

  • Chromate/epoxy powder coated/zinc electroplated finish
  • Compact design with small turning radius
  • Ferrule also provides maximum surface contact for better sealing and a continuous, permanent, positive metal to metal ground
  • Full, machined tapered threads (NPT)
  • Malleable iron nut
  • Polypropylene sealing ring with locknut standard
  • Seals out oil, water, dust, dirt and fumes
  • Suitable for wet locations
  • Unique long ferrule with more pronounced threads provides over four times UL pull out requirements
Standard
Class I, Division 2; UL 514B, E14814, CSA C22.2 No. 18.3, 065178, NEMA FB-1
Sub_Brand
Appleton
Trade_Size
2
Type
Liquidtight Oiltight Raintight
