Appleton Appleton LL250-M


Description

Industry Description

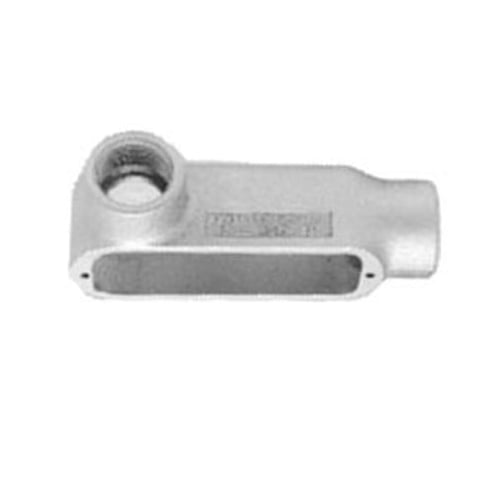

Form 35 UNILETS Type LL Conduit Outlet Body, Hub Size: 2-1/2 IN, Form: 35, Length: 13.69 IN, Width: 5-3/4 IN, Material: Malleable Iron, Finish: Triple-Coat (Zinc Electroplate, Chromate And Epoxy Powder Coat), Connection: Tapered Female Th

Modified Industry Description

2-1/2 MALL LL COND BODY

AD Description

Appleton® UNILETS™ LL250-M Type LL Conduit Outlet Body, 2-1/2 in Hub, Form 35, 140.5 cu-in, Malleable Iron, Triple Coated

Vendor Description

Appleton® Form 35™ Malleable Iron Conduit Outlet Bodies, Covers and Gaskets are used to connect and change direction of conduit runs. In addition to making bends in a conduit system, they allow connections for branch runs. These conduit bodies serve as pulling fittings and permit access to conductors for splicing and maintenance.

Specifications

Application
For Use With Rigid Steel, Rigid Aluminum Conduit And IMC
Brand Name
Appleton
Configuration
LL
Connection
Tapered Female Threaded
Country of Origin
MX
Finish
Zinc Plated
Form
35
Hub_Size
2.5
Material
Malleable
Special Features

  • (3) 300 kcmil maximum wire fill
  • 1/2 to 3 in blank covers are domed for extra wiring space
  • Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity
  • Exclusive built-in easy-pulling rollers in type C (1-1/4 in thru 4 in) and type LB (1-1/4 in thru 4 in) eliminate damage when cable is pulled through hubs
  • For use with rigid steel, rigid aluminum and IMC conduit
  • Form 35™ malleable iron UNILETS™ high tensile strength and ductility
  • Form 35™ malleable iron UNILETS™ high tensile strength and ductility, high corrosion resistance, high impact and shock resistance
  • High corrosion resistance, high impact and shock resistance
  • Malleable iron cover, stainless steel cover screws, neoprene or composition fiber gasket
  • Raintight when a cover and gasket are installed
  • Sizes with flat back design ideal where fitting is mounted flat against surface
  • Smooth, rounded integral bushing in hubs protects conductor insulation
  • Smooth, rounded integral bushings in hubs protect conductor insulation
  • Triple coated (zinc electroplated, chromate and epoxy powder coated)
Standard
UL 514A, UL 514B, UL File Number E2527, CSA C22.2 No. 18.3, CSA 065183, NEMA FB-1
Sub_Brand
Appleton
Trade_Size
2-1/2
Type
Type LL Conduit Outlet Body
