Appleton Appleton 7100S
Appleton 7100S
Kirby Risk #: 494950
UPC: 68785587319, 687855873197, 00687855873197
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Appleton
Description
Industry Description
Features:1 1/4IN Dia X 1 9/16IN Length, 9/16 IN Thread Length, Concretetight, Standard:UL 514B, CSA C22.2, NEMA FB-1, Size:1IN, Connection:Male NPS Thread, Material:Steel, Finish:Zinc Electro Plated
Modified Industry Description

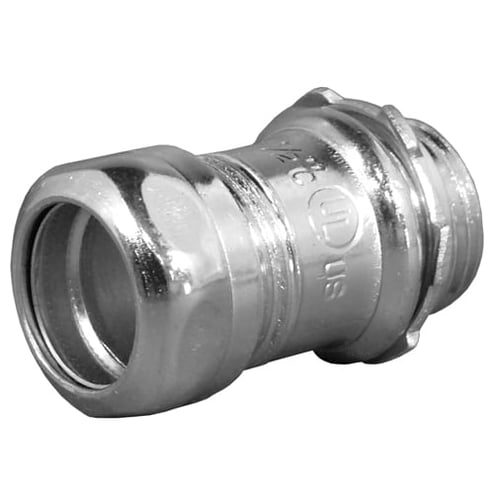

1 IN EMT COMPRESSION CONNECTOR, STEEL
AD Description
Appleton® ETP™ 7100S 7000S Non-Insulated Throat Straight Compression Connector, 1 in Trade, For Use With EMT Conduit, Steel, Zinc Electroplated
Vendor Description
Appleton® offer ETP™ 7000S Series steel EMT compression connectors. They are used to ground and secure EMT raceways to boxes and enclosures. The 7000S Series have a male NPS threaded hub and are available with or without an insulated throat.
Specifications
| Application |
To ground and secure EMT Raceways to boxes and enclosures
|
|---|---|
| Brand Name |
Appleton
|
| Color |
Metallic
|
| Connection |
Male NPS Thread
|
| Country of Origin |
IN
|
| Diameter |
1.56
|
| Finish |
Zinc Electroplated
|
| Insulation |
Non Insulated
|
| Material |
Steel
|
| NEMA_Rating |
FB-1
|
| Special Features |
|
| Standard |
UL 514B, CSA C22.2, NEMA FB-1
|
| Sub_Brand |
Appleton
|
| Trade_Size |
1
|
| Type |
Non-Insulated Throat Straight
|
