Appleton Appleton 7075ST
Appleton 7075ST
Kirby Risk #: 494948
UPC: 68785587314, 687855873142, 00687855873142
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Appleton
Description
Industry Description
Features:1 1/32IN Dia X 1 1/4IN Length, 7/16 IN Thread Length, Concretetight, Standard:UL 514B, CSA C22.2, NEMA FB-1, Size:0.75IN, Connection:Male NPS Thread, Material:Steel, Finish:Zinc Electro Plated,Insulation:Insulated Throat, Temperature Rating:90CE
Modified Industry Description

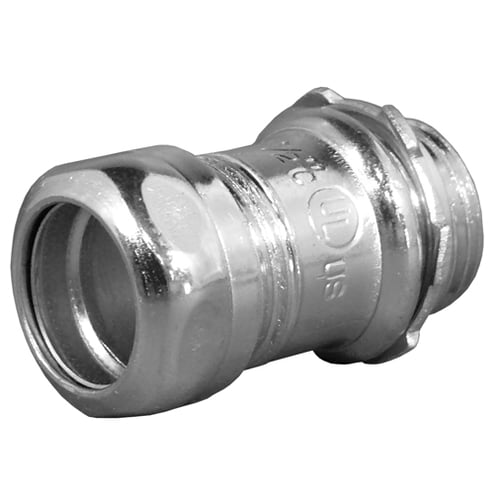

3/4 IN INSULATED EMT COMPRESSION CONNECTOR, STEEL
AD Description
O-Z/Gedney 7075ST 7000S Non-Threaded Compression Connector, 3/4 in Trade, Steel Body and Nut, Electro-Plated Zinc
Specifications
| Application |
To ground and secure EMT Raceways to boxes and enclosures
|
|---|---|
| Brand Name |
Appleton
|
| Color |
Metallic
|
| Connection |
Male NPS Thread
|
| Country of Origin |
IN
|
| Finish |
Zinc Electro Plated
|
| Insulation |
Insulated Throat
|
| Material |
Steel
|
| NEMA_Rating |
FB-1
|
| Special Features |
|
| Standard |
UL 514B, CSA C22.2, NEMA FB-1
|
| Sub_Brand |
Appleton
|
| Temperature_Rating |
90 deg C
|
| Trade_Size |
3/4
|
| Type |
Compression Connector
|
