Appleton Appleton ECP-1523


Description

Industry Description

Appleton U-Line Interchanger ECP Standard Plug, Number Of Poles: 3, Number Of Wires: 2, Amperage Rating: 15 AMP, Voltage Rating: 125 VAC, Material: Copperfree (Less Than 4/10 Of 1 PCT) Aluminum, Nema Rating: NEMA 7BCD, 9G, Plug Cable Diameter: 0.

Modified Industry Description

15A 125V - ECP INTERCHANGER PLUG, 3 POLE, 2 WIRE

AD Description

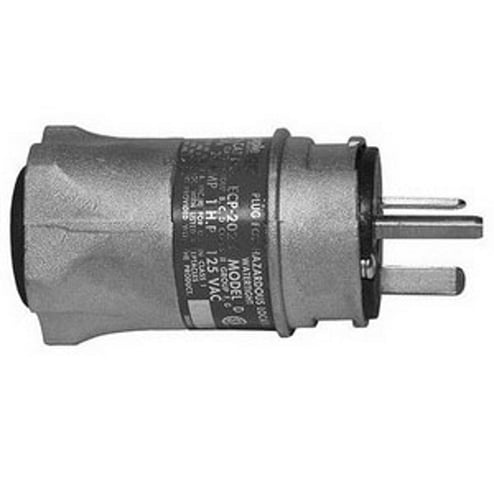

Appleton® U-Line® Interchanger™ ECP-1523 Straight Blade Plug, 125 VAC, 15 A, 3 Poles, 2 Wires

Specifications

Amperage Rating
15
Application
Fits?Any?Standard Non-Explosionproof?Receptacle As?Well?As?U-Line?Explosionproof?Receptacles
Brand Name
Appleton
Country of Origin
MX
Material
Copperfree?(Less Than 4/10?Of?1 PCT)?Aluminum
NEMA_Configuration
5-15P
NEMA_Rating
NEMA 7BCD, 9G
Number_Of_Poles
3
Number_Of_Wires
2
Poles
3
Special Features

  • A twist of the plug produces audible click to indicate fast make and break of built-in switch contacts
  • Explosion proof and dust-ignition proof
  • Insulators provide superior dielectric and mechanical strength and lowest arc tracking
  • Longer plug housing for better gripping and easier plug insertion and withdrawal
  • Plugs fits any standard non-explosion proof receptacle (NEMA 5-15R, 5-20R or 6-20R) as well as U-Line explosion proof receptacles
  • Suitable for use in such areas as refineries, petrochemical plants, and other areas subject to where ignitable gases are present
  • Twisting plug locks it in place and cannot be accidentally pulled out
  • Unique blade-type, brass contacts exert constant pressure along entire contact surface and provide superior electrical contact
Standard
Class I, Division 1 And 2, Groups B, C, D; Class II, Division 1 And 2, Group G and Coal Dust; Class III
Sub_Brand
Appleton
Type
ECP Standard Plug
Voltage Rating
125
