Appleton Appleton E50-M


Description

Industry Description

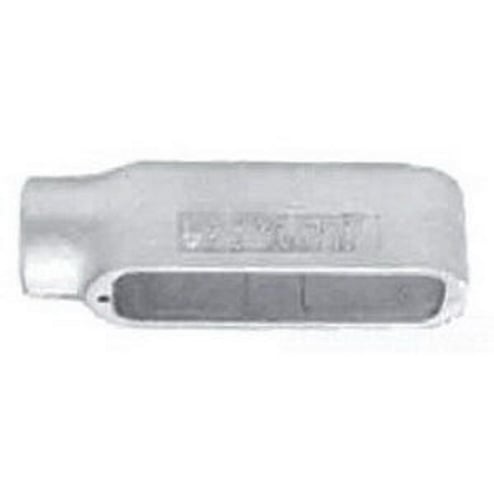

Form 35 UNILETS Type E Conduit Outlet Body, Hub Size: 1/2 IN, Form: 35, Length: 4.63 IN, Material: Malleable Iron, Finish: Triple-Coat (Zinc Electroplate, Chromate And Epoxy Powder Coat), Connection: Tapered Female Threaded, Standard: UL 51

Modified Industry Description

1/2 MALL E COND BODY

AD Description

Appleton® UNILETS™ E50-M Type E Conduit Outlet Body, 1/2 in Hub, Form 35, 4.5 cu-in, Malleable Iron, Triple Coated

Vendor Description

Appleton® Form 35™ Malleable Iron Conduit Outlet Bodies, Covers and Gaskets are used to connect and change direction of conduit runs. In addition to making bends in a conduit system, they allow connections for branch runs. These conduit bodies serve as pulling fittings and permit access to conductors for splicing and maintenance.

Specifications

Application
For Use With Rigid Steel, Rigid Aluminum Conduit And IMC
Brand Name
Appleton
Configuration
E
Connection
Tapered Female Threaded
Country of Origin
MX
Finish
Triple Coated
Form
Form 35
Hub_Size
1/2
Material
Malleable Iron
Special Features

  • Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity
  • Form 35™ malleable iron UNILETS™ high tensile strength and ductility
  • High corrosion resistance, high impact and shock resistance
  • Sizes with flat back design ideal where fitting is mounted flat against surface
  • Smooth, rounded integral bushing in hubs protects conductor insulation
Standard
UL 514A, UL 514B, UL File Number E2527, CSA C22.2 No. 18.3, CSA 065183, NEMA FB-1
Sub_Brand
Appleton
Trade_Size
1/2
Type
Type E
