Appleton Appleton STNM-90100


Description

Industry Description

Appleton STNM Series 90 DEG Liquidtight Connector, Size: 1 IN, Material: Steel, Insulation: Insulated Throat, Thread Length: 0.72 IN, Standard: Class I, Division 2, UL 514B, E14814, CSA C22.2 No. 18, 065178, For Connecting To Type A Flexible No

Modified Industry Description

1IN90D CN-P L/T CONN

AD Description

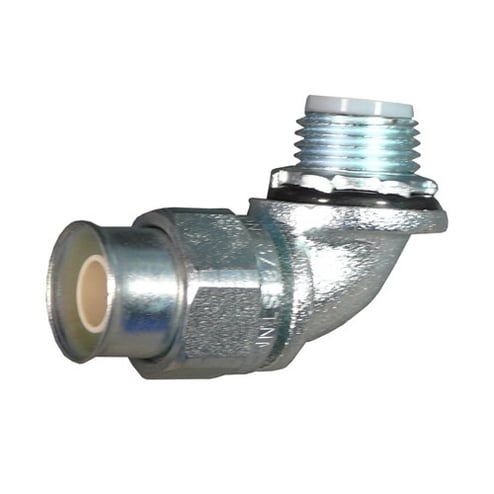

Appleton® STNM-90100 Conduit Connector With Insulated Throat, 1 in Trade, 90 deg, Steel

Specifications

Application
For Connecting To Type A Flexible Nonmetallic Conduit
Brand Name
Appleton
Country of Origin
MX
Insulation
Insulated
Material
Steel
Special Features

  • Ease of assembly and disassembly of STNM connectors permits make up of harnesses in advance for fast, simple connections during production line assemblies
  • Eliminates common connection problems and assures a liquidtight seal against oil, water, dirt and chemicals
  • It cannot bend or twist the conduit and thereby protects wiring
  • The nut rides only on the sleeve and not on the conduit
  • The positive, pull out proof seal formed by a STNM connector begins with its deep threaded ferrule that bites into the inner wall of the conduit
  • The sleeve is held captive within a compression nut that allows it to move freely and self align with the conduit having a slightly irregular surface or varying wall thickness
  • The sleeve separates the STNM series apart from ordinary connectors
  • When fully tightened, the flared sleeve extends beyond the nut, providing additional protection from flexing
Standard
Class I, Division 2; UL 514B, E14814, CSA C22.2 No. 18, 065178
Sub_Brand
Appleton
Trade_Size
1
Type
Straight
