Appleton Appleton UNF75NR


Description

Industry Description

UNILETS UNF Union, Trade Size: 3/4 IN, Outside Diameter: 1-3/4 IN, Length: 1.47 IN, Flexibility: Rigid And IMC, Material: Steel, Connection: Female Threaded, Finish: Zinc Electroplate, Standard: UL 886 (1203), UL File Number E10444, UL Li

Modified Industry Description

3/4 IN STEEL FEMALE/FEMALE CONDUIT UNION

AD Description

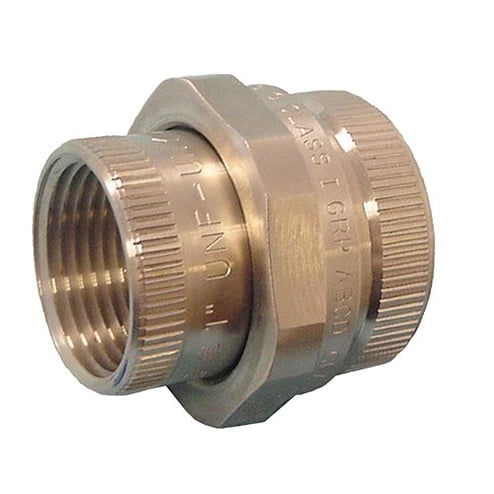

Appleton® UNILETS® UNF75NR Dust-Ignitionproof Explosionproof Conduit Union, 3/4 in, Steel, Zinc Electroplated

Vendor Description

Appleton® UNY, UNF, and UNL explosionproof and dust-ignitionproof unions are used for joining conduit and connecting conduit to enclosures. They facilitate modifications and permit the removal of enclosures without turning or removing conduit. They are also available as expansion unions, which compensate for the expansion and contraction of conduit.

Specifications

Application
For Connecting Conduit To Conduit
Brand Name
Appleton
Connection
Female Threaded
Country of Origin
MX
Finish
Zinc Electroplated
Flexibility
Rigid And IMC
Material
Steel
Mounting
Female/Female
Outside_Diameter
1.75
Special Features

  • Accurately tapped, tapered NPT threads for tight, rigid joints and ground continuity
  • Concentric ring interlocked design sizes makes possible smaller diameter, allowing use in tighter spaces
  • Facilitates modifications, permits removal of enclosures without turning or removal of conduit
  • Female threaded coneection
  • Smooth, rounded integral bushing in each hub to protect conductor insulation
Standard
UL 886 (1203), UL File Number E10444, UL Listed for Class I, Groups A, B, C, d; Class II, Groups E, F, G; and Class III, CSA C22.2 No. 25, C22.2 No. 30, CSA 065181 Certified
Sub_Brand
Appleton
Trade_Size
3/4
Type
Dust-Ignitionproof Explosionproof
