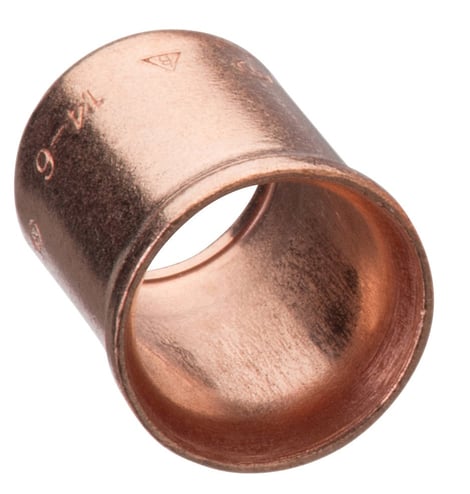

Ideal Ideal 2006S
Ideal 2006S
Kirby Risk #: 494721
UPC: 78178945005, 781789450056, 00781789450056, 30781789450057
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Ideal
Description
Industry Description
Buchanan, Crimp Connector, Splice Cap, Conductor Range: 18 - 10 AWG, 18/2 AWG Min, 12/4 AWG Max, Finish: Zinc-Plated, Tin-Plated Steel Sleeves, Material: Copper Sleeves, Voltage Rating: 600 V
Modified Industry Description
18 TO 10 AWG CRIMP CONNECTORS, SPLICE CAP
AD Description
BUCHANAN 2006S Splice Cap Crimp Connector, 18 to 10 AWG Solid Copper Wire, Non-Insulated Insulation, Copper
Vendor Description
Crimp connectors from IDEAL® are designed for making fast, permanent, pressure-type connections. Whether there is a connection in a high vibration environment or installations at an OEM, there is a solution available. The steel and copper crimp connectors cover a wide range of combinations and have available insulating caps to protect against dangerous electrical shock.
Specifications
| Application |
For Buchanan C24 Crimp Tool And Designed For Fast, Permanent, Pressure-Type Connections
|
|---|---|
| Brand Name |
Ideal
|
| Conductor Range |
18 - 10 AWG, 18/2 AWG Min, 12/4 AWG Max
|
| Country of Origin |
USA
|
| Finish |
Zinc Plated
|
| Material |
Copper
|
| Package_Quantity |
100
|
| Special Features |
|
| Standard |
CSA, UL Listed, RoHS
|
| Sub_Brand |
Buchanan
|
| Temperature_Rating |
221
|
| Type |
Splice Cap
|
| Voltage Rating |
600
|
| Wire_Type |
Solid Copper
|
