Appleton Appleton HUB-200


Description

Industry Description

Straight Insulated Throat Hub, Size: 2 IN, Material: Malleable Iron, Finish: Triple-Coat (Zinc Electroplate, Chromate And Epoxy Powder Coat), Standard: UL 514B, UL File Number E14814, CSA C22.2 No. 18.3, CSA 065178, NEMA FB-1, UL Listed F

Modified Industry Description

2 IN STEEL CONDUIT HUB, INSULATED

AD Description

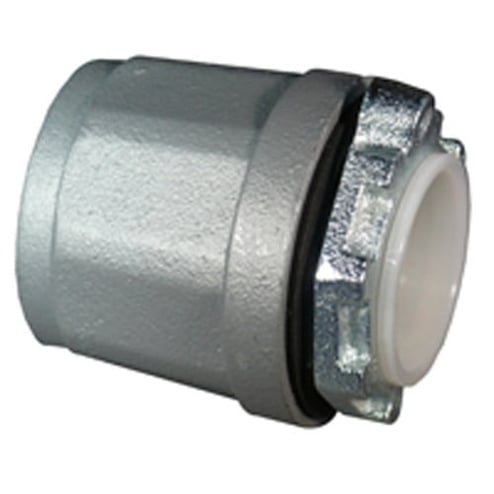

Appleton® HUB-200 Straight Conduit Hub, 2 in, For Use With IMC/Rigid Conduit, Malleable Iron, Triple Coated

Vendor Description

Appleton® HUB threaded conduit hubs are general purpose fittings designed for RMC and IMC. They provide a more vibration resistant connection with assured ground continuity. The HUB design is an insulated throat form with a bonding screw. The O-ring provides a watertight connection between the hub and an enclosure.

Specifications

Application
For Use To Connect Rigid Metal Conduit Or IMC To A Threadless Opening In An Enclosure
Brand Name
Appleton
Country of Origin
MX
Finish
Triple Coated
Insulation
Insulated
Material
Malleable Iron
Special Features

  • Appleton® Uni-Seal rigid conduit hubs eliminate the need for welded hubs
  • Built-in recessed gasket
  • Efficiency of installation is built into the superior design, single wrench installation
  • Flame resistant insulated throat eliminates need for end bushings
  • Patented hex-hub wedge adapter fits nearly flush against the interior side walls of enclosures, provides maximum wiring room
  • Protective insulated throats, positive grounding and watertight sealing action
  • Simple two piece construction
Standard
UL 514B, UL File Number E14814, CSA C22.2 No. 18.3, CSA 065178, NEMA FB-1, UL Listed For Class I, Division 2
Sub_Brand
Appleton
Trade_Size
2
Type
Straight
