Appleton Appleton GRX200


Description

Industry Description

UNILETS Outlet Box, Number Of Outlet: 4, Material: Malleable Iron, Size: 2 IN, Cable Entry: (4) 2 IN GRTX Hub, Cubic Capacity: 76 CU-IN, Knockouts: No, Cover Opening: 4.88 IN, Form Number: 3, Height: 5-3/4 IN, Width: 5-3/4 IN, Depth: 4-1/4

Modified Industry Description

2-IN JCT UNILET

AD Description

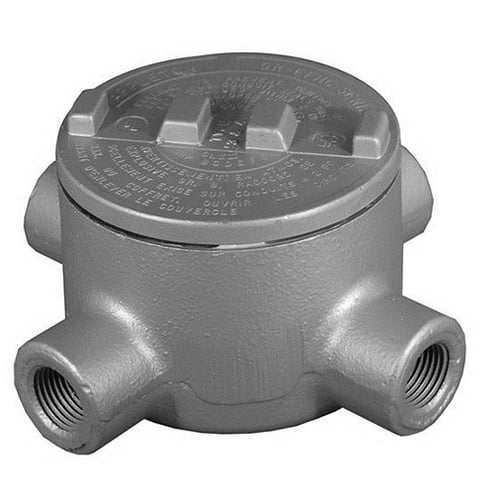

Appleton® UNILETS® GRX200 X-Style Dust-Ignitionproof Explosionproof Conduit Outlet Box With Cover, 2 in, 4.88 in Cover Opening, 76 cu-in, Triple Coated

Vendor Description

Appleton® explosionproof and dust-ignitionproof GR and GRF conduit outlet boxes are furnished with internal ground screw and O-ring. They are ideal for use in indoor and outdoor classified locations. These corrosion-resistant outlet boxes provide access for maintenance, allow the connection of different lengths of conduit, and for changing the direction of conduit.

Specifications

Application
For Use With Threaded Metal Conduit
Brand Name
Appleton
Cable_Entry
(4) 2 IN GRTX Hub
Country of Origin
MX
Cubic_Capacity
76
Finish
Triple Coated
Knockouts
False
Material
Malleable Iron
Number_Of_Outlets
4
Size
2
Special Features

  • Accommodate sealing, dome, hub and union hub covers and canopies
  • Accurately tapped, tapered hub threads for tight, rigid joints and ground continuity
  • Chromate/epoxy powder coated/zinc electroplated finish
  • Complies with a wide range of classified area requirements
  • Connect conduit lengths and change direction of conduit runs
  • Corrosion resistant
  • Covers have pry notches for bar or wrench
  • For pulling of wires
  • Function as sealing fittings when used with sealing covers
  • General purpose wiring
  • Internal ground screw standard
  • Internally threaded body with externally threaded cover
  • Malleable iron bodies have high tensile strength and ductility and provide great resistance to corrosion, impact and shock
  • Offers ten hub arrangements
  • Provide access for maintenance
  • Smooth, rounded integral bushing in each hub type box protects conductor insulation
  • Standard O-rings provide raintight fit
Standard
Class 1, Zone 1 And 2 IIA And IIB, UL File Number E10444, CSA C22.2 No. 25, C22.2 No. 30, CSA 013017 Certified, Class I, Division 1 And 2, Groups B, C, D Class II, Division 1 And 2, Groups E, F, G Class III
Sub_Brand
Appleton
Type
X-Style Dust-Ignitionproof Explosionproof
