Appleton Appleton CG90-6250


Description

Industry Description

90 DEG Liquidtight Strain Relief Connector, Size: 1/2 IN, Conductor Range: 5/8 - 3/4 IN, Material: Cast Aluminum, Color: Orange Label, Nema Rating: NEMA 3R, Connection: Threaded Hub, Standard: Class I, Division 2, Class II, Division 1 A

Modified Industry Description

1/2 AL 90D CORD CONN

AD Description

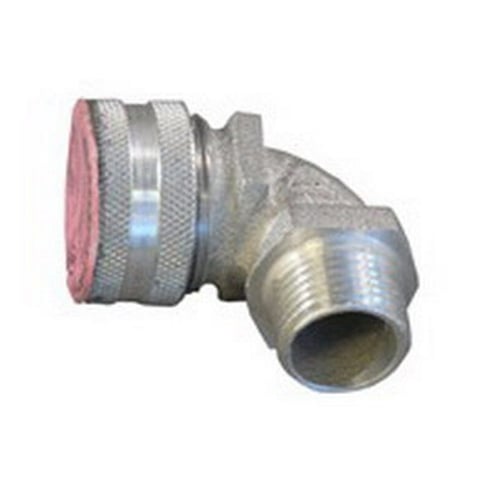

Appleton® CG90-6250 Liquidtight Strain Relief Connector, 1/2 in Trade, 5/8 to 3/4 in Cable Openings, Cast Aluminum

Vendor Description

Appleton® liquidtight strain relief cord and cable connectors are available in straight or 90 deg, aluminum or steel construction to meet the requirements of rugged service on all types of equipment and in all non-hazardous areas. They provide a liquidtight and strain relief termination for flexible type neoprene, hypalon, and PVC jacketed power or control cord and cable. Ideal for use in wet or dry locations, they seal electrical connections against dust and dirt, oil, water or other atmosphere containing moisture.

Specifications

Application
For Flexible Type Neoprene, Hypalon And PVC Jacketed Power Or Control Cord And Cable
Brand Name
Appleton
Color
Orange
Conductor Range
5/8 - 3/4
Connection
Threaded Hub
Country of Origin
MX
Material
Cast Aluminum
NEMA_Rating
NEMA 3R
Special Features

  • Color coded identification label clearly states the catalog number and minimum-maximum cable diameter range for which the connector is designed
  • For particularly harsh applications, wire mesh strain reliefs may be used with cord and cable connectors
  • Large aluminum connectors 1-1/2 in thru 4 in and all steel connectors are constructed with hex head cap
  • Neoprene sealing grommet firmly but safely grips cable jacket providing strain relief while protecting internal wiring connections against external tension on cable or cord
  • Provide a liquidtight and strain relief termination for flexible type neoprene, hypalon, and PVC jacketed power or control cord and cable
  • Steel or teflon washer reduces friction between grommet and connector cap providing even pressure distribution, eliminating leakage resulting from grommet distortion
Standard
Class I, Division 2, Class II, Division 1 And 2 Class III, UL 514B, E14817, CSA C22.2 No. 18.3, 065178
Sub_Brand
Appleton
Trade_Size
1/2
Type
90 DEG Liquidtight Strain Relief Connector
