Appleton Appleton FSC150


Description

Industry Description

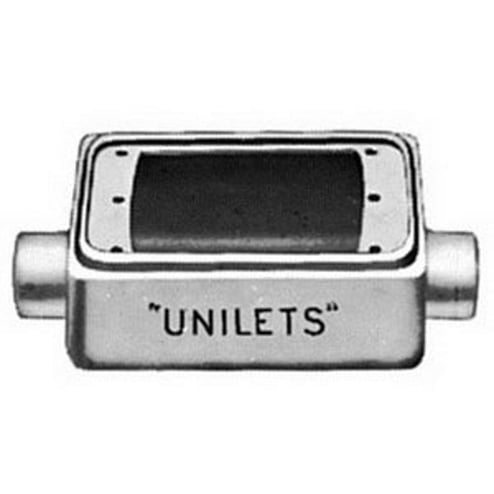

UNILETS FSC Shallow Depth 1-Gang Cast Device Box, Number Of Outlet: 2, Material: Malleable Iron, Size: 1/2 IN, Cable Entry: (2) 1/2 IN Hub, Cubic Capacity: 25 CU-IN, Knockouts: No, Height: 4.56 IN, Width: 2.81 IN, Depth: 2 IN, Finish: Trip

Modified Industry Description

1/2 IN 1 GANG MALLEABLE IRON FSC BOX

AD Description

Appleton® UNILETS™ FSC150 Type FSC Heavy Duty Shallow Device Box With Internal Ground Screw, Malleable Iron, 25 cu-in, 1 Gangs, 2 Outlets, 2 Knockouts

Specifications

Application
For Use With Threaded Metal Conduit And IMC
Brand Name
Appleton
Cable_Entry
(2) 1/2 IN Hub
Country of Origin
MX
Cubic_Capacity
25
Finish
Tri-Coated
Gang
1
Hub_Size
1/2
Knockouts
False
Material
Malleable Iron
Number_Of_Outlets
2
Size
1/2
Special Features

  • Accommodate wiring devices such as switches and receptacles
  • Accurately tapped, tapered threads for tight, rigid joints and ground continuity
  • Allow connections for branch conduit runs
  • Blank bodies for special conduit entrance arrangements
  • Both malleable iron and aluminum boxes have ridge top construction for positive cover/gasket/box fit
  • Complete selection of covers, receptacles, plugs, gaskets and accessories
  • Corrosion-resistant ideal for indoor and outdoor installations
  • Covers have captive stainless steel screws to speed installation, prevents loss of screws
  • FD boxes take devices exceeding 1.63/41.4 mm in depth under fastening ears
  • FS and FD boxes take standard flush wiring devices
  • Malleable iron for high tensile strength and ductility provides greater resistance to impact and shock
  • Permit access to conductors for maintenance
  • Provide excellent service in areas where boxes are subject to rough usage
  • Provide openings for making splices
  • Serve as pull boxes for conductors
  • Smooth, rounded integral bushing in each hub protects conductor insulation
  • Weatherproof, raintight and dust tight when used with cast gasketed covers
  • Without knockouts
Standard
UL 514 A, UL File Number E2527, CSA C22.2 No. 18.1, CSA 001472 Certified, NEMA FB-1
Sub_Brand
Appleton
Trade_Size
1 Gang
Type
Type FSC Heavy Duty Shallow
