Appleton Appleton 15235
Appleton 15235
Kirby Risk #: 493955
UPC: 78138178060, 781381780605, 0068785578060, 00781381780605
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Appleton
Description
Industry Description
Conduit Connector, Size: 1-1/4 IN, Connection: Armored Cable X Flexible Metal Conduit, Conductor Range: 0.81 - 1.31 IN, Material: Malleable Iron, Height: 2.38 IN, Width: 0.66 IN, Thread Length: 0.56 IN, Standard: UL 514B, UL Listed: E23237,
Modified Industry Description
1-1/4 MALL 2SCR SEC CONN
AD Description

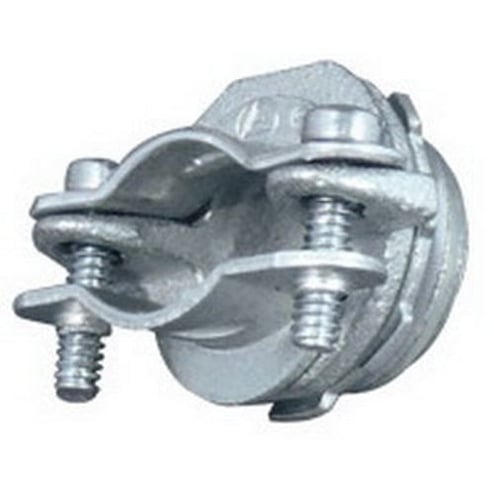

Appleton® 15235 Non-Metallic Sheathed Conduit Connector, 1-1/4 in Trade, 0.81 to 1.31 in Cable Openings, Malleable Iron
Vendor Description
Appleton® Group provides a complete selection of conduit bodies, outlet boxes, device boxes, cable glands and other fittings for both hazardous and ordinary locations. A variety of materials and styles are available to suit your needs for weather and corrosion-resistance. Whether you are wiring an office building or an offshore oil platform, Appleton® Group has all the top quality components you need.
Specifications
| Application |
For Used To Ground And Secure Nonmetallic Sheathed And Service Entrance Cable to Boxes And Enclosures
|
|---|---|
| Connection |
Flex Connector
|
| Country of Origin |
MX
|
| Dimensions |
0.56 in L x 0.66 in W x 2.38 in H
|
| Length1 |
5.5000
|
| Material |
Malleable Iron
|
| Size |
1-1/4
|
| Special Features |
|
| Standard |
UL 514B, UL Listed: E23237, CSA Standard: C22.2 No. 18.3, CSA Certified: 065178, NEMA FB-1
|
| Type |
Non-Metallic
|
