Lithonia Lighting Lithonia Lighting PS600QD M12


Description

Industry Description

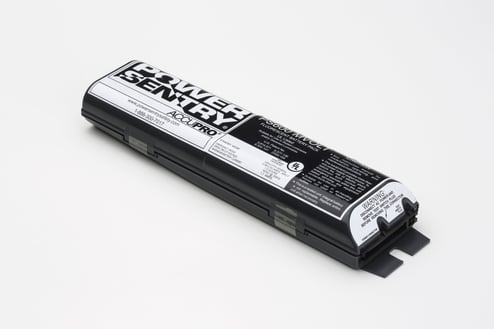

Reduced-Profile, Quick-Disconnect Fluorescent Battery Pack, Operates One or Two 2'-4' Fluorescent T8-T12 Lamps, One 2'-4' Fluorescent T5, T8 or T12, HO, Long Compact or One 6'-8' Fluorescent T12, 600 Lumens, SKU - 420717

Modified Industry Description

75W 600 TO 700 LM - LINEAR FLUORESCENT BATTERY PACK

Specifications

Amperage Rating
0.29
Application
Emergency and Safety
Average_Life
60,000
Brand Name
Lithonia Lighting
Country of Origin
CN
Environmental_Conditions
Indoor
Lamp_Type
Fluorescent
Material
Metal/Thermoplastic
Number_Of_Lamps
1
Power_Source
Hardwired
Special Features

  • Automatic battery recharge after 90 min discharge
  • Capacitive input circuit provides high efficiency and reliable operation
  • Constant current type charger
  • Durable thermoplastic/metal housing resists impact, scratches and corrosion
  • Factory or field installed inside or outside (field only) fluorescent fixture to operate lamps at reduced light output, providing optimum glare-free illumination for a minimum of 90 min upon interruption of normal power
  • For indoor environment
  • Fully charged after 72 hr
  • High efficiency push-pull inverter is the most effective method of converting DC power to AC power
  • It provides maximum light output, battery life and reliability
  • Pilot light and test switch provide visual and manual means of monitoring system operation
  • Polarized quick-connect pilot light/test switch assembly simplifies installation
  • Reduced profile footprint fits in the tightest applications
  • Sealed, maintenance free, high temperature range nickel cadmium battery ensures long life over wide temperature ranges
  • Specification grade emergency ballast to operate one or two lamps (4 ft or shorter) or one 8 ft lamp
  • UL94 VAC-0 flame rating
Standard
NFPA 101,UL
Sub_Brand
Lithonia Lighting
Type
Battery Pack Quick Disconnect
Voltage Rating
120/277
Wattage
3
