Panduit Panduit SCL400-6


Description

Industry Description

Copper butt splice, long barrel, 400 kcmil cable.

Modified Industry Description

Copper Compression Butt Splice,

AD Description

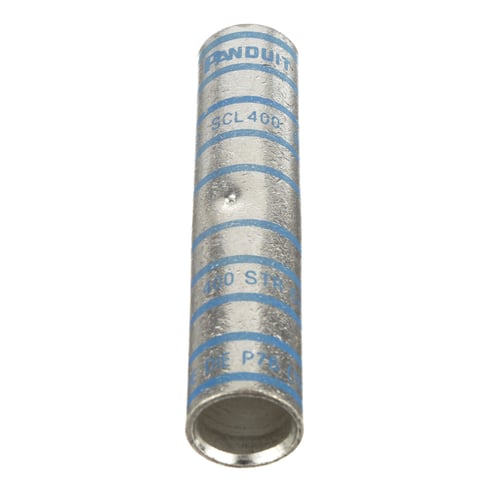

Panduit® Pan-Lug™ Pan-Term® SCL400-6 Compression Butt Splice, 400 kcmil, 4.37 in L, Long Seamless Barrel, Copper, Blue

Vendor Description

Panduit® Pan-Term® Splices are designed and manufactured for fast assembly, and long reliable performance. As the demand for splices increases, it becomes essential to provide a complete system for termination products. We provide an extensive line of tooling designed specifically to provide optimum performance when used as a system for terminating.

Specifications

Brand Name
Panduit
Color
Blue
Conductor Type
Stranded Copper
Conductor Size
400
Country of Origin
MEX
Finish
Electro Plated Tin
Insulation
Non Insulated
Material
Copper
Package_Quantity
1
Size
400
Special Features

  • Color coded barrels marked with Panduit® and specified competitor die index numbers for proper crimp die selection
  • Internal wire stops to prevent over insertion of conductor
  • Long barrel maximizes the number of crimps and provides premium wire pull out strength and electrical performance
  • Premium pull out strength
  • Tin plated to inhibit corrosion
Standard
True
Sub_Brand
Panduit
Temperature_Rating
90
Type
Compression
Voltage Rating
35
