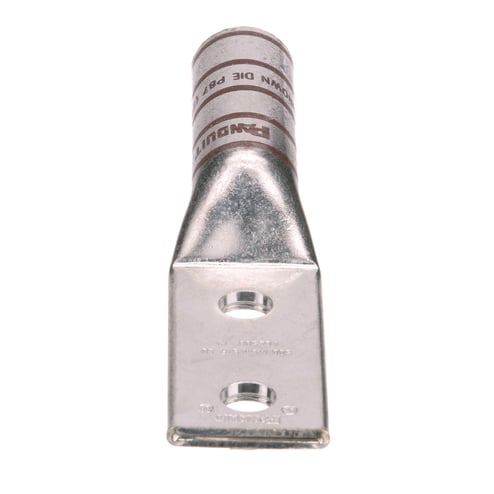

Panduit Panduit LCC500-12-6

Name: Panduit LCC500-12-6
Brand: Panduit
SKU: 492522
Price: 4390.54 USD
Availability: InStock

Panduit LCC500-12-6

Kirby Risk #: 492522

UPC: 07498390265, 074983902651, 30074983902652, 00074983902651

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: Panduit

Description

Industry Description

Two-hole, long barrel lug, 500 kcmil cable, 1/2 stud hole, 1.75 hole spacing.

Modified Industry Description

500 MCM 1/2 IN 2 HOLE COPPER COMPRESSION LUG, LONG BARREL, 1.75 IN HOLE SPACING

AD Description

Panduit® LCC500-12-6 2-Hole Compression Lug, 500 kcmil Copper Conductor, Die Code: P87, 1/2 in Stud, Tin Plated Copper

Brand Name	Panduit
Color	Brown
Conductor Material	Copper
Conductor Size	500
Country of Origin	MEX
Material	Tin Plated Copper
Mounting	2 9/16
Number_Of_Holes	2
Package_Quantity	1
Size	500 kcmil Code
Special Features	1.75 in hole spacing 2.5625 in L wire strip Color coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection Enclosed barrel prevents corrosive material from entering barrel when used in harsh environments For use with stranded copper conductors Inspection window Long barrel maximizes number of crimps and provides premium wire pull-out strength and electrical performance Straight angle Tin plated to inhibit corrosion
Standard	C22.2 No. 65-13, 486A-486B File #E52164
Stud_Size	1/2
Sub_Brand	Panduit
Temperature_Rating	90
Type	2-Hole
Voltage Rating	35
