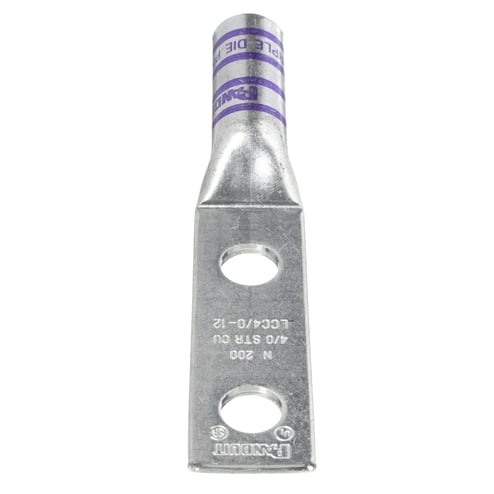

Panduit Panduit LCC4/0-12-X

Name: Panduit LCC4/0-12-X
Brand: Panduit
SKU: 492514
Price: 1850.24 USD
Availability: InStock

Panduit LCC4/0-12-X

Kirby Risk #: 492514

UPC: 07498390240, 074983902408, 30074983902409, 00074983902408

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: Panduit

Description

Industry Description

Two-hole, long barrel lug, 4/0 AWG wire, 1/2 stud hole, 1.75 hole spacing.

Modified Industry Description

4/0 AWG 1/2 IN 2 HOLE COPPER COMPRESSION LUG, LONG BARREL, 1.75 IN HOLE SPACING

AD Description

Panduit® Pan-Lug™ LCC4/0-12-X 2-Hole Compression Lug, 4/0 AWG Copper Conductor, Die Code: P54, 1/2 in Stud, Tin Plated Copper

Brand Name	Panduit
Color	Purple
Conductor Material	Copper
Conductor Size	4/0
Country of Origin	MEX
Material	Tin Plated Copper
Mounting	1 5/8
Number_Of_Holes	2
Package_Quantity	1
Size	4/0 Code
Special Features	Color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection Enclosed barrel prevents corrosive material from entering barrel when used in harsh environments For use with stranded copper conductors Long barrel maximizes number of crimps and provides premium wire pull-out strength and electrical performance Tin-plated to inhibit corrosion
Standard	C22.2 No. 65-13, 486A-486B File #E52164
Stud_Size	1/2
Sub_Brand	Panduit
Temperature_Rating	90
Type	2-Hole
Voltage Rating	35
