Panduit Panduit LCA2-38-Q

Name: Panduit LCA2-38-Q
Brand: Panduit
SKU: 492346
Price: 757.84 USD
Availability: InStock

Panduit LCA2-38-Q

Kirby Risk #: 492346

UPC: 07498390017, 074983900176, 30074983900177, 00074983900176

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: Panduit

Description

Industry Description

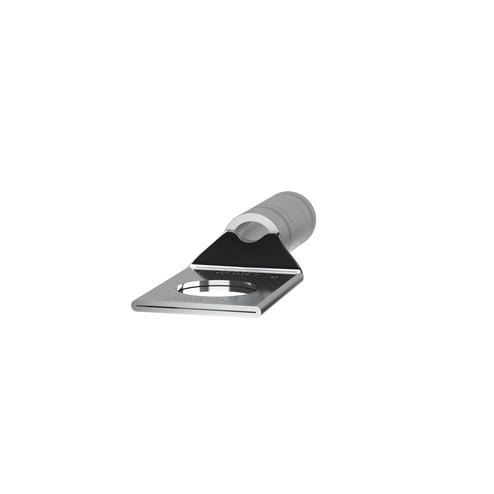

One-hole, standard barrel with window lug, #2 AWG wire, 3/8 stud hole, standard package.

Modified Industry Description

2 AWG 3/8 IN 1 HOLE COPPER COMPRESSION LUG W/ WINDOW

AD Description

Panduit® Pan-Lug™ LCA2-38-Q 1-Hole Compression Lug, 2 AWG Copper Conductor, Die Code: P33, 3/8 in Stud, Copper

Brand Name	Panduit
Color	Brown
Conductor Material	Copper
Conductor Size	2
Country of Origin	MEX
Material	Tin Plated Copper
Mounting	15/16
Number_Of_Holes	1
Package_Quantity	1
Size	#2 Code
Special Features	15/16 in L wire strip Color coded barrels marked with Panduit® and specified competitor die index numbers for proper crimp die selection Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V For use with stranded copper conductors Inspection window to visually assure full conductor insertion Straight tongue angle Tin plated to inhibit corrosion
Standard	C22.2 No. 65-13, 486A-486B File #E52164
Stud_Size	3/8
Sub_Brand	Panduit
Temperature_Rating	90
Type	1-Hole
Voltage Rating	35
