Panduit Panduit P8-14R-Q

Name: Panduit P8-14R-Q
Brand: Panduit
SKU: 492247
Price: 162.42 USD
Availability: InStock

Panduit P8-14R-Q

Kirby Risk #: 492247

UPC: 07498387079, 074983870790, 30074983870791, 00074983870790

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: Panduit

Description

Industry Description

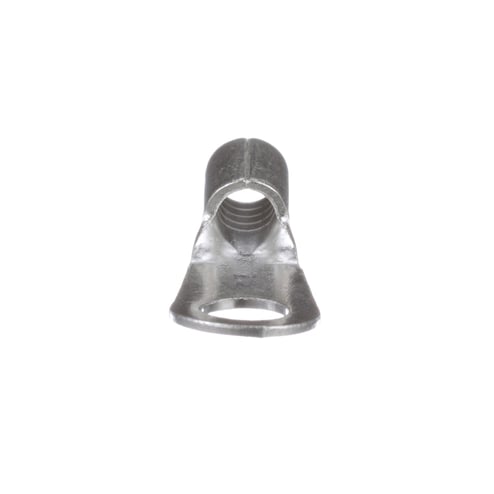

Ring terminal, large wire, 8 AWG, 1/4" stud size, non-insulated, standard package.

Modified Industry Description

8 AWG 1/4 IN STUD NON INSULATED RING TERMINAL

AD Description

Panduit® Pan-Term® P8-14R-Q P Series Loose Piece Non-Insulated Ring Terminal, 8 AWG Conductor, 1.14 in L, Brazed Seam Barrel, Copper, Metallic

Brand Name	Panduit
Color	Metallic
Connection	Standard
Conductor Size	8
Country of Origin	MEX
Enclosure	Ring shape
Finish	Tin Plated
Insulation	Non Insulated
Insulation_Material	Non Insulated
Material	Copper
Mounting	3/8" (.375)
Package_Quantity	25
Size	1.14Inches
Special Features	Barrel of terminal internally beveled to provide quick and easy wire insertion Brazed seam protects terminal barrel from splitting during the crimp process Internal barrel serrations assure good wire contact and maximum tensile strength Ring tongue design assures a secure connection in high vibration applications
Standard	cULus Listed 587H E52164, CSA Certified LR31212
Stud_Size	1/4
Sub_Brand	Panduit
Type	Loose Piece Non-Insulated
Voltage Rating	2000
