Appleton Appleton SC-400
Appleton SC-400
Kirby Risk #: 491870
UPC: 68785520220, 687855202201, 00687855202201
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Appleton
Description
Industry Description
Features:5.46IN Dia X 4.55IN Length, 1 IN Thread Length, Flexible Metal Conduit, Application:Dry Location, Standard:UL 514B, CSA C22.2, NEMA FB-1, Size:4IN, Connection:Male NPS Thread, Material:Zinc Die Cast
Modified Industry Description
4 IN STRAIGHT SQUEEZE Connector Die-Cast
AD Description

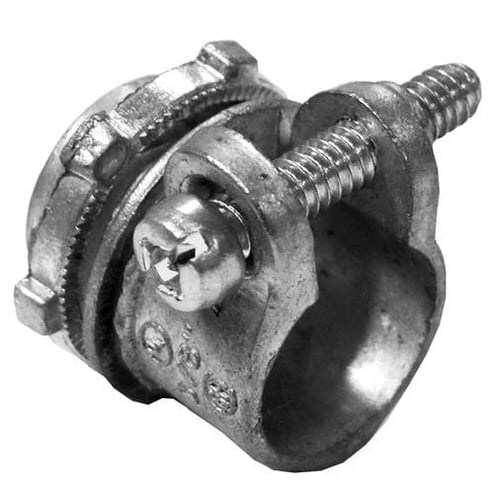

Appleton® NEER™ SC-400 Non-Insulated Throat Straight Squeeze Conduit Connector With Locknut, 4 in Trade, 4.16 to 4.5 in Cable Openings, For Use With FMC, Die Cast Zinc, Natural
Vendor Description
Appleton® offer NEER™ zinc cable and conduit connectors for terminating flexible metal conduit in a dry location box or enclosure, or joining lengths of flexible metal conduit. Type SC straight squeeze connectors, Type AC 90 deg two screw clamp connectors and Type DC-5500 duplex, single screw, clamp connectors are used to make a termination of flexible metal conduit. Type FC set screw connectors are used to terminate 1/2 in regular wall steel or aluminum flexible conduit. Type GC screw-in connectors are for use with flexible metal conduit. Type GX screw-in connectors are used to join lengths of flexible metal conduit.
Specifications
| Application |
Terminates flexible metal conduit to a knockout in a dry location box or enclosure
|
|---|---|
| Brand Name |
Appleton
|
| Color |
Metallic
|
| Conductor Range |
4.16-4.50
|
| Connection |
Male NPS Thread
|
| Country of Origin |
IN
|
| Environmental_Conditions |
Dry Location
|
| Finish |
Natural
|
| Insulation |
None
|
| Material |
Die Cast Zinc
|
| NEMA_Rating |
FB-1
|
| Special Features |
|
| Standard |
UL Standard: 514B; UL Listed: E32539, CSA Standard: C22.2 No. 18.3, CSA Certified: 208044; NEMA: FB-1
|
| Sub_Brand |
Appleton
|
| Trade_Size |
4
|
| Type |
Non-Insulated Throat Straight
|
