Panduit Panduit PV14-6FN-C

Name: Panduit PV14-6FN-C
Brand: Panduit
SKU: 491767
Price: 84.34 USD
Availability: InStock

Panduit PV14-6FN-C

Kirby Risk #: 491767

UPC: 07498380867, 074983808670, 30074983808671, 00074983808670

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: Panduit

Description

Industry Description

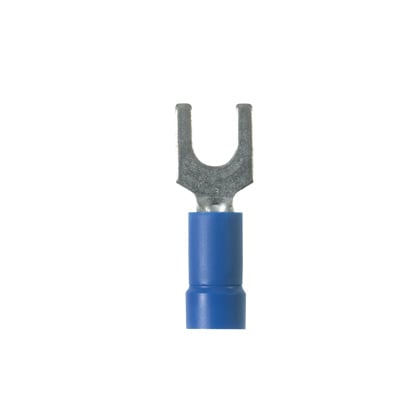

Fork Terminal, vinyl insulated, funnel entry, 16- 14 AWG, #6 stud size, narrow tongue, standard package.

Modified Industry Description

Fork Terminal, narrow tongue, vinyl

AD Description

Panduit® Pan-Term® PV14-6FN-C PV-FN Insulated Fork Terminal, 16 to 14 AWG Conductor, 0.84 in L, Brazed Seam Barrel, Copper, Blue

Brand Name	Panduit
Color	Blue
Connection	Funnel Entry
Conductor Size	16 to 14
Country of Origin	MEX
Enclosure	Fork shape
Finish	Tin Plated
Insulation	PVC
Material	Copper
Mounting	5/16
Package_Quantity	100
Size	#6
Special Features	Brazed seam protects terminal barrel from splitting during the crimp process Fork design provides for fast and easy installation, without the need to remove fastener Insulation support helps to prevent wire damage in bending applications Internal barrel serrations assure good wire contact and maximum tensile strength
Standard	Yes - American Bureau of Shipping (ABS)
Stud_Size	#6
Sub_Brand	Panduit
Type	Insulated
Voltage Rating	600
