Panduit Panduit P14-8F-C

Name: Panduit P14-8F-C
Brand: Panduit
SKU: 491699
Price: 47.03 USD
Availability: InStock

Panduit P14-8F-C

Kirby Risk #: 491699

UPC: 07498380510, 074983805105, 30074983805106, 00074983805105

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: Panduit

Description

Industry Description

Fork Terminal, non-insulated, 18- 14 AWG, #8 stud size, standard package.

Modified Industry Description

18 TO 14 AWG NON INSULATED LOCKING FORK TERMINAL, 8 STUD

AD Description

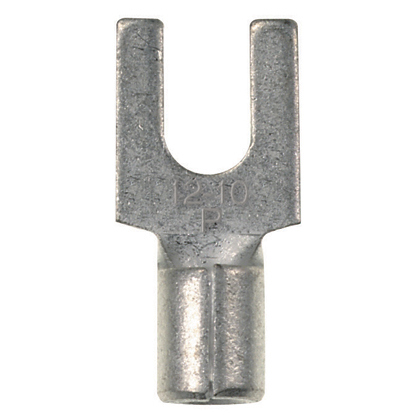

Panduit® Pan-Term® P14-8F-C P Series Non-Insulated Fork Terminal, 18 to 14 AWG Conductor, 0.69 in L, Brazed Seam Barrel, Copper, Metallic

Brand Name	Panduit
Color	Metallic
Conductor Range	16-14
Connection	Standard
Conductor Size	18 to 14
Country of Origin	MEX
Enclosure	Fork shape
Finish	Tin Plated
Insulation	Non Insulated
Insulation_Material	Non Insulated
Material	Copper
Mounting	9/32
Package_Quantity	100
Size	0.69Inches
Special Features	Barrel of terminal internally beveled to provide quick and easy wire insertion Brazed seam protects terminal barrel from splitting during the crimp process Fork design provides for fast and easy installation, without the need to remove fastener Internal barrel serrations assure good wire contact and maximum tensile strength
Standard	Yes - American Bureau of Shipping (ABS)
Stud_Size	#8
Sub_Brand	Panduit
Type	Non-Insulated
Voltage Rating	2000
