Panduit Panduit P10-6R-L

Name: Panduit P10-6R-L
Brand: Panduit
SKU: 491538
Price: 64.35 USD
Availability: InStock

Panduit P10-6R-L

Kirby Risk #: 491538

UPC: 07498380228, 074983802289, 30074983802280, 00074983802289

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: Panduit

Description

Industry Description

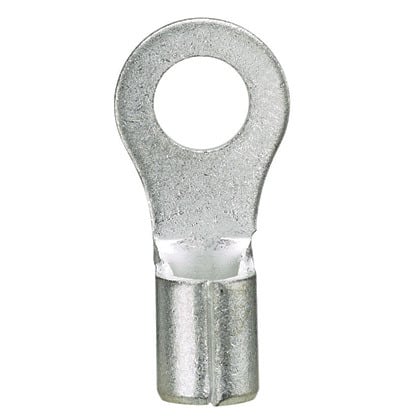

Ring Terminal, 12 Â– 10 AWG, #6 stud size, non-insulated, standard package.

Modified Industry Description

Ring Terminal, non-insulated, 14 -

AD Description

Panduit® Pan-Term® P10-6R-L P Series Loose Piece Non-Insulated Ring Terminal, 14 to 10 AWG Conductor, 0.78 in L, Brazed Seam Barrel, Copper, Metallic

Brand Name	Panduit
Color	Metallic
Conductor Range	14-10
Connection	Standard
Conductor Size	14 to 10
Country of Origin	MEX
Enclosure	Ring shape
Finish	Tin Plated
Insulation	Non Insulated
Insulation_Material	Non Insulated
Material	Copper
Mounting	9/32" (.2812)
Package_Quantity	50
Size	0.78Inches
Special Features	Barrel of terminal internally beveled to provide quick and easy wire insertion Brazed seam protects terminal barrel from splitting during the crimp process Internal barrel serrations assure good wire contact and maximum tensile strength Ring tongue design assures a secure connection in high vibration applications
Standard	UL Listed 587H E52164, CSA Certified LR31212, Military QPL AS7928 (MS20659-165)
Stud_Size	#6
Sub_Brand	Panduit
Type	Loose Piece Non-Insulated
Voltage Rating	2000
