Panduit Panduit P18-14R-C


Description

Industry Description

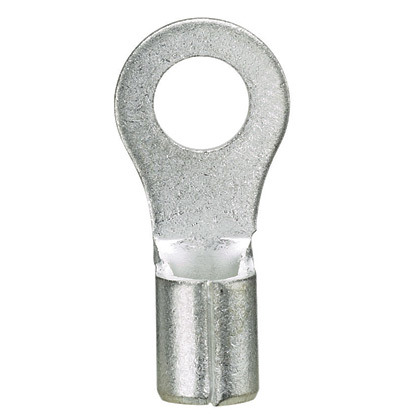

Ring Terminal, 22 – 16 AWG, 1/4" stud size, non-insulated, standard package.

Modified Industry Description

Ring Terminal, non-insulated, 22 -

AD Description

Panduit® Pan-Term® P18-14R-C P Series Loose Piece Non-Insulated Ring Terminal, 22 to 16 AWG Conductor, 0.91 in L, Brazed Seam Barrel, Copper, Metallic

Specifications

Brand Name
Panduit
Color
Metallic
Conductor Range
22-16
Connection
Standard
Conductor Size
22 to 16
Country of Origin
MEX
Enclosure
Ring shape
Finish
Tin Plated
Insulation
Non Insulated
Insulation_Material
Non Insulated
Material
Copper
Mounting
9/32" (.2812)
Package_Quantity
100
Size
0.91Inches
Special Features

  • Barrel of terminal internally beveled to provide quick and easy wire insertion
  • Brazed seam protects terminal barrel from splitting during the crimp process
  • Internal barrel serrations assure good wire contact and maximum tensile strength
  • Ring tongue design assures a secure connection in high vibration applications
Standard
UL Listed 587H E52164, CSA Certified LR31212
Stud_Size
1/4
Sub_Brand
Panduit
Type
Loose Piece Non-Insulated
Voltage Rating
2000
