Panduit Panduit PV10-14R-L

Name: Panduit PV10-14R-L
Brand: Panduit
SKU: 491496
Price: 111.12 USD
Availability: InStock

Panduit PV10-14R-L

Kirby Risk #: 491496

UPC: 07498380134, 074983801343, 30074983801344, 00074983801343

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: Panduit

Description

Industry Description

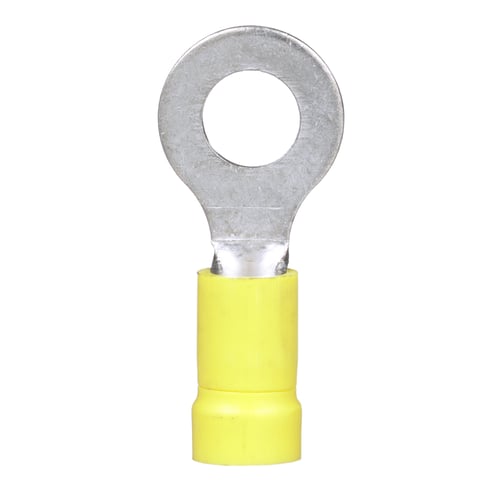

Ring Terminal, 12 Â– 10 AWG, 1/4" stud size, vinyl insulated, funnel entry, standard package.

Modified Industry Description

12 TO 10 AWG 1/4 IN STUD FUNNEL ENTRY VINYL INSULATED RING TERMINAL

AD Description

Panduit® Pan-Term® PV10-14R-L PV Series Insulated Loose Piece Ring Terminal, 12 to 10 AWG Conductor, 1.23 in L, Brazed Seam Barrel, Copper, Yellow

Brand Name	Panduit
Color	Yellow
Conductor Range	12-10
Connection	Funnel Entry
Conductor Size	12 to 10
Country of Origin	MEX
Enclosure	Ring shape
Finish	Tin Plated
Insulation	Vinyl
Insulation_Material	Vinyl
Material	Copper
Mounting	5/16" (.3125)
Package_Quantity	50
Size	1.23Inches
Special Features	Brazed seam protects terminal barrel from splitting during the crimp process Insulation support helps to prevent wire damage in bending applications Internal barrel serrations assure good wire contact and maximum tensile strength Ring tongue design assures a secure connection in high vibration applications
Standard	cULus Listed 587H E52164, CSA Certified LR31212
Stud_Size	1/4
Sub_Brand	Panduit
Type	Insulated Loose Piece
Voltage Rating	600
