Panduit Panduit PN10-6R-L

Name: Panduit PN10-6R-L
Brand: Panduit
SKU: 491403
Price: 137.71 USD
Availability: InStock

Panduit PN10-6R-L

Kirby Risk #: 491403

UPC: 07498380028, 074983800285, 30074983800286, 00074983800285

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: Panduit

Description

Industry Description

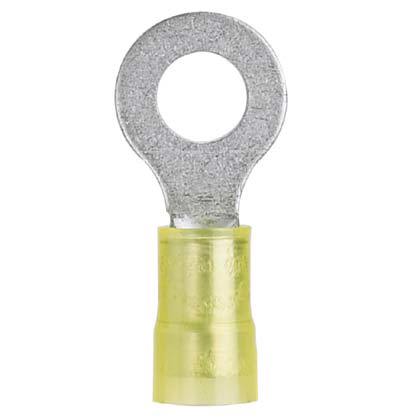

Ring Terminal, 12 Â– 10 AWG, #6 stud size, nylon insulated, standard package.

Modified Industry Description

12 TO 10 AWG 6 STUD NYLON INSULATED RING TERMINAL, BULK

AD Description

Panduit® Pan-Term® PN10-6R-L PN Series Insulated Loose Piece Ring Terminal, 12 to 10 AWG Conductor, 1.06 in L, Seamed/Sleeved Barrel, Copper, Yellow

Brand Name	Panduit
Color	Yellow
Conductor Range	12-10
Connection	Standard
Conductor Size	12 to 10
Country of Origin	MEX
Enclosure	Ring shape
Finish	Tin Plated
Insulation	Nylon
Insulation_Material	Nylon
Material	Copper
Mounting	9/32" (.2812)
Package_Quantity	50
Size	1.06Inches
Special Features	Internal barrel serrations assure good wire contact and maximum tensile strength Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications Ring tongue design assures a secure connection in high vibration applications
Standard	UL Listed 587H E52164, CSA Certified LR31212, Military QPL AS7928 (MS25036-111)
Stud_Size	#6
Sub_Brand	Panduit
Type	Insulated Loose Piece
Voltage Rating	600
