Panduit Panduit PN14-14R-C
Panduit PN14-14R-C
Kirby Risk #: 491397
UPC: 07498380022, 074983800223, 30074983800224, 00074983800223
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Panduit
Description
Industry Description

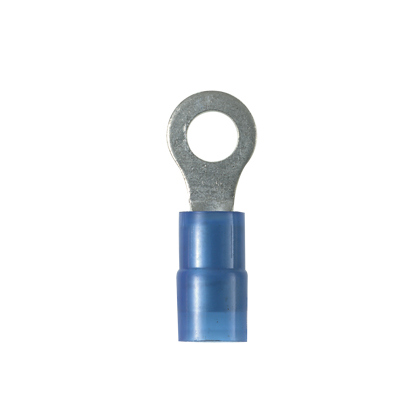

Ring Terminal, 18 – 14 AWG, 1/4 " stud size, nylon insulated, standard package.
Modified Industry Description
18 - 14 AWG 1/4 IN STUD NYLON INSULATED
AD Description
Panduit® Pan-Term® PN14-14R-C PN Series Insulated Loose Piece Ring Terminal, 18 to 14 AWG Conductor, 1.05 in L, Seamed/Sleeved Barrel, Copper, Blue
Specifications
| Brand Name |
Panduit
|
|---|---|
| Color |
Blue
|
| Conductor Range |
18-14
|
| Connection |
Standard
|
| Conductor Size |
18 to 14
|
| Country of Origin |
MEX
|
| Enclosure |
Ring shape
|
| Finish |
Tin Plated
|
| Insulation |
Nylon
|
| Insulation_Material |
Nylon
|
| Material |
Copper
|
| Mounting |
7/32" (.2187)
|
| Package_Quantity |
100
|
| Size |
1.05Inches
|
| Special Features |
|
| Standard |
cULus Listed 587H E52164, CSA Certified LR31212, Military QPL AS7928 (MS25036-154)
|
| Stud_Size |
1/4
|
| Sub_Brand |
Panduit
|
| Type |
Insulated Loose Piece
|
| Voltage Rating |
600
|
