Hubbell Hubbell FDS60


Description

Industry Description

Hubbell Wiring Device Kellems, Switches and Lighting Controls,Industrial Grade, Fused Disconnects, Heavy Duty, Three Pole, 60 600V AC,Terminal Screws, Gray

Modified Industry Description

60 A 600 V 3 POLE FUSED DISCONNECT SWITCH

AD Description

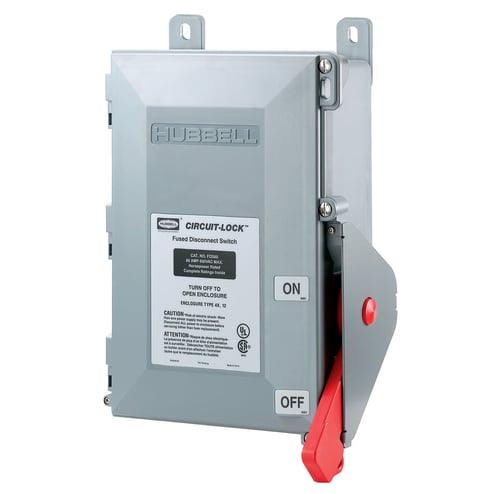

Wiring Device-Kellems Circuit-Lock® FDS60 Extra Heavy Duty Fused Non-Metallic Standard Disconnect Switch, 600 VAC, 60 A, 40 hp, 3 Poles

Vendor Description

Hubbell Circuit-Lock® non-metallic disconnect switches comply with both the controller and disconnect requirements of the NEC®, making them ideal for meeting line of sight requirements in a variety of industrial environments. They feature a high visibility red handle that can be locked in the OFF position to comply with OSHA lockout/tagout regulations. For maximum reliability, the external stainless steel hardware and rugged enclosure resist abuse and corrosion, while a neoprene gasket ensures a watertight seal.

Specifications

Action
Snap
Actuator
Lever
Amperage Rating
60
Application
Extra Heavy Duty Industrial
Brand Name
Hubbell
Connection
Terminal Screws
Country of Origin
PL
Environmental_Conditions
Indoor Dry unless Protected by Additional Means
Frequency_Rating
60
Material
Composite
Mounting
Mounting Feet
Number_Of_Poles
3
Operating_Cycles
6k
Operating_Temperature
Max Continuous- 67 Degrees C, Minimum- -40 Without Impact
Size
Standard Sized
Special_Features

  • 3 hp at 120 VAC, 15 hp at 240 VAC, 30 hp at 480 VAC, 40 hp at 600 VAC
  • Easy installation with adjustable mounting feet and fully removable covers
  • Heavy duty, corrosion resistant type 4X Valox® enclosure
  • Superior safety switches can only be turned ON with the cover closed

Standard
UL 746C
Sub_Brand
Hubbell Wiring Device-Kellems
Type
Complete Switch
Width_2
12.2000
