Hubbell Hubbell HBL5252W
Hubbell HBL5252W
Kirby Risk #: 490465
UPC: 78358543494, 783585434940, 00783585434940
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description
Hubbell Wiring Device Kellems, Straight Blade Devices, Receptacles,Duplex, Commercial/Industrial Grade, 2-Pole 3-Wire Grounding, 15A 125V,5-15R, White, Single Pack
Modified Industry Description
15A 125V RECPT WHITE
AD Description

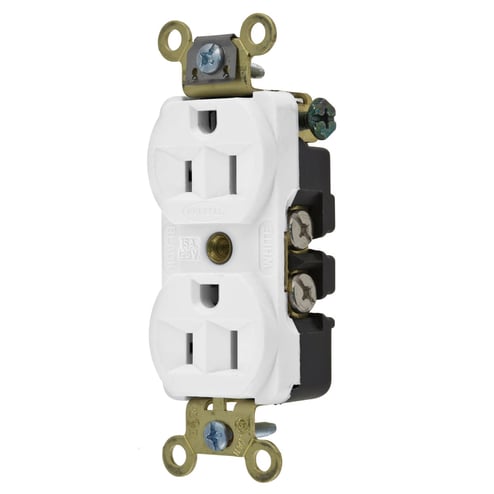

Wiring Device-Kellems HBL5252W Compact Duplex Extra Heavy Duty Self-Grounding Straight Blade Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, White
Specifications
| Amperage Rating |
15
|
|---|---|
| Application |
Extra Heavy Duty Compact
|
| Brand Name |
Hubbell
|
| Color |
White
|
| Connection |
Back and Side Wired
|
| Conductor Size |
#14 AWG to #12 AWG
|
| Country of Origin |
US
|
| Dielectric_Strength |
Withstands 2,000V minimum
|
| Environmental_Conditions |
Indoor Dry unless Protected by Additional Means
|
| Grade |
Commercial/Industrial
|
| Material |
Composite/Thermoplastic
|
| Mounting |
Screw Mount
|
| NEMA_Configuration |
5-15R
|
| NEMA_Rating |
NEMA 5-15R
|
| Number_Of_Poles |
2
|
| Number_Of_Wires |
3
|
| Phase |
Single
|
| Size |
Standard Sized Product
|
| Special Features |
|
| Standard |
NEMA WD1 and WD5, UL 498
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Temperature_Rating |
-40 to 75
|
| Type |
Compact Duplex Extra Heavy Duty Self-Grounding
|
| Voltage Rating |
125
|
| Wattage |
1875Watts
|
