Hubbell Hubbell HBL3032
Hubbell HBL3032
Kirby Risk #: 490421
UPC: 78358543456, 783585434568, 00783585434568
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description

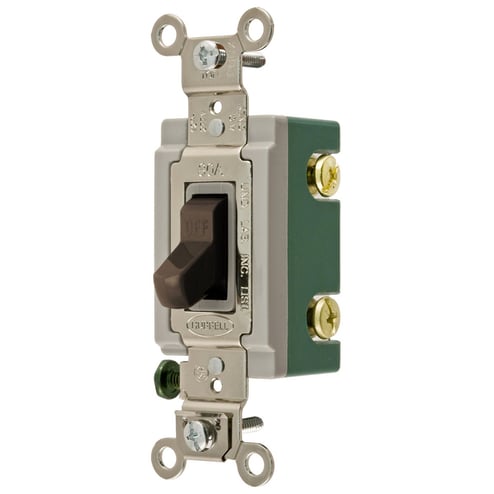

Hubbell Wiring Device Kellems, Switches and Lighting Controls, ExtraHeavy Duty Industrial Grade, Toggle Switches, General Purpose AC, DoublePole, 30A 120/277V AC, Back and Side Wired, Brown
Modified Industry Description
30A 120/277V 2 POLE BROWN TOGGLE SWITCH, BACK AND SIDE WIRED
AD Description
Wiring Device-Kellems HBL® HBL3032 2-Position Extra Heavy Duty General Purpose Industrial Grade Toggle Switch, 120/277 VAC, 30 A, 8310 W
Specifications
| Action |
Positive Snap
|
|---|---|
| Actuator |
Toggle
|
| Amperage Rating |
30
|
| Application |
Industrial Grade
|
| Brand Name |
Hubbell
|
| Color |
Brown
|
| Connection |
Back and Side Wired
|
| Contact_Configuration |
Two Position
|
| Contact_Rating |
Per UL 20
|
| Country of Origin |
CN
|
| Enclosure |
None
|
| Environmental_Conditions |
Indoor Dry unless Protected by Additional Means
|
| Insulation |
None
|
| Material |
Nylon Toggle/Thermoset Body
|
| Mounting |
Screw
|
| Number_Of_Poles |
2
|
| Operating_Cycles |
50000
|
| Operating_Temperature |
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
|
| Size |
Standard Sized
|
| Special Features |
Standard Product
|
| Standard |
NEMA WD1, UL20
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Type |
2-Position Extra Heavy Duty General Purpose Industrial Grade
|
| Voltage Rating |
120/277
|
| Wattage |
8.31k
|
