Hubbell Hubbell HBL53CM62
Hubbell HBL53CM62
Kirby Risk #: 490126
UPC: 78358541106, 783585411064, 00783585411064
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description

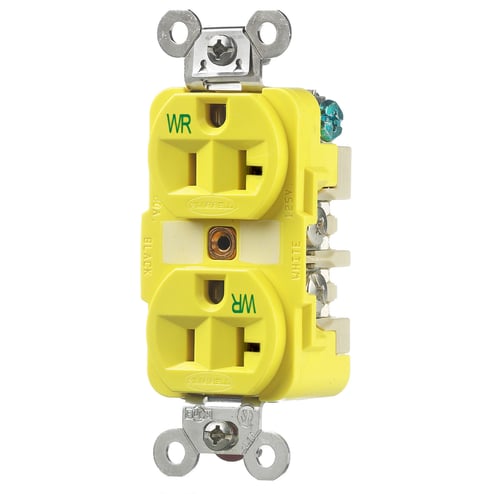

Hubbell Wiring Device Kellems, Straight Blade Devices, Receptacles,Duplex, Marine Grade, 2-Pole 3-Wire Grounding, 20A 125V, 5-20R, Yellow,Single Pack, Chem-Marine
Modified Industry Description
20A 125V RECPT YELLOW MARINE/CHEM
AD Description
Wiring Device-Kellems HBL53CM62 Grounding Extra Heavy Duty Straight Blade Duplex Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Yellow
Specifications
| Amperage Rating |
20
|
|---|---|
| Application |
Marine Wiring Devices
|
| Brand Name |
Hubbell
|
| Color |
Yellow
|
| Connection |
Screw Terminal
|
| Conductor Size |
#14 AWG to #12 AWG
|
| Country of Origin |
US
|
| Dielectric_Strength |
Withstands 2,000V minimum
|
| Environmental_Conditions |
Indoor Dry unless Protected by Additional Means
|
| Grade |
Specification
|
| Material |
Melamine
|
| Mounting |
Screw Mount
|
| NEMA_Configuration |
5-15R
|
| NEMA_Rating |
NEMA 5-20R
|
| Number_Of_Poles |
2
|
| Number_Of_Wires |
3
|
| Phase |
Single
|
| Size |
Standard Sized Product
|
| Special Features |
|
| Standard |
NEMA WD1 and WD5, UL 498
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Temperature_Rating |
-40 to 75
|
| Type |
Grounding Extra Heavy Duty
|
| Voltage Rating |
125
|
| Wattage |
2000Watts
|
