Hubbell Hubbell HBL4100C12W
Hubbell HBL4100C12W
Kirby Risk #: 489958
UPC: 78358540397, 783585403977, 00783585403977
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description

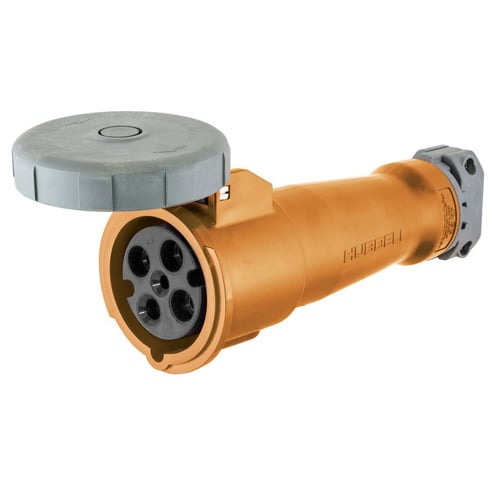

Hubbell Wiring Device Kellems, Heavy Duty Products, IEC Pin and SleeveDevices, Industrial Grade, Female, Connector Body, 100A 125/250V, 3-Pole4-Wire Grounding, Terminal Screws, Orange, Watertight
Modified Industry Description
100A 125/250V 3 POLE 4 WIRE FEMALE SLEEVE CONNECTOR BODY
AD Description
Wiring Device-Kellems HBL4100C12W Advantage Female Heavy Duty Standard Watertight Pin and Sleeve Connector, 125/250 VAC, 100 A, 3 Poles, 4 Wires, Orange
Specifications
| Amperage Rating |
100
|
|---|---|
| Application |
High Ampacity Connections
|
| Brand Name |
Hubbell
|
| Color |
Orange
|
| Conductor Range |
#3AWG - #1/0AWG
|
| Connection |
Pressure Screw Terminal
|
| Country of Origin |
PR
|
| Environmental_Conditions |
Water Tight
|
| Insulation |
Insulated Body
|
| Material |
Composite
|
| Mounting |
Cord Mounted
|
| NEMA_Rating |
Non-NEMA
|
| Number Of Conductors |
4-Wire Grounding
|
| Number_Of_Poles |
3
|
| Size |
Standard
|
| Special Features |
|
| Standard |
UL 498, IEC 309-1 and 309-2
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Temperature_Rating |
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
|
| Type |
Standard
|
| Voltage Rating |
125/250
|
