Hubbell Hubbell HBL7571
Hubbell HBL7571
Kirby Risk #: 489591
UPC: 78358523769, 783585237695, 00783585237695
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description
Hubbell Wiring Device Kellems, Locking Devices, Midget Twist-Lock,Industrial, Angled Female Connector, 15A 125V, 2-Pole 3-Wire Grounding,ML-2R, Screw Terminal, Black
Modified Industry Description
15A 125V CONN BLACK MIDGET
AD Description

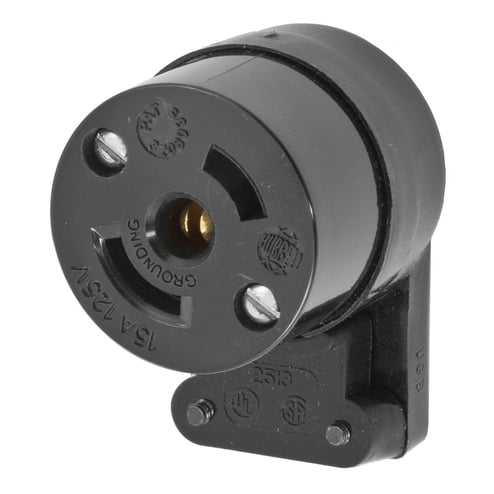

Wiring Device-Kellems Midget Twist-Lock® HBL7571 Female Grounding Heavy Duty Standard Locking Connector, 125 VAC, 15 A, 2 Poles, 3 Wires, Black
Specifications
| Amperage Rating |
15
|
|---|---|
| Application |
Heavy Duty Industrial
|
| Brand Name |
Hubbell
|
| Color |
Black
|
| Conductor Range |
#14AWG - #12AWG
|
| Connection |
Pressure Screw Terminal
|
| Country of Origin |
PR
|
| Enclosure |
IP20
|
| Environmental_Conditions |
Indoor Dry unless Protected by Additional Means
|
| Grade |
Industrial
|
| Material |
Composite/Nylon
|
| Mounting |
Cord Mounted
|
| NEMA_Rating |
NEMA ML-2R
|
| Number Of Conductors |
3-Wire Grounding
|
| Number_Of_Poles |
2
|
| Number_Of_Wires |
3
|
| Size |
Midget Locking
|
| Special Features |
|
| Standard |
NEMA WD1 and WD5, UL498
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Temperature_Rating |
-40 to 75
|
| Type |
Female Grounding Heavy Duty Standard
|
| Voltage Rating |
125
|
