Hubbell Hubbell CR15GRY


Description

Industry Description

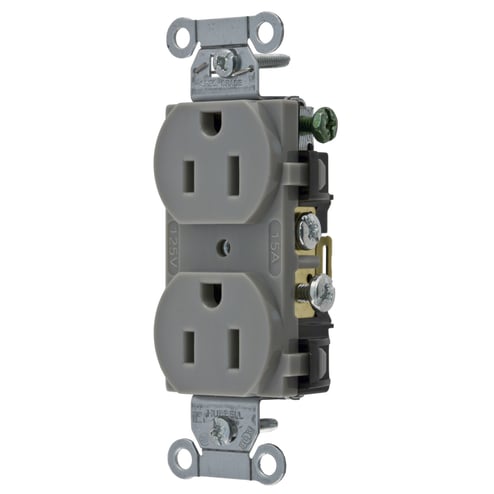

Hubbell Wiring Device Kellems, Straight Blade Devices, Receptacles,Duplex, Commercial Grade, 2-Pole 3-Wire Grounding, 15A 125V, 5-15R,Gray, Single Pack

Modified Industry Description

15A 125V GRAY DUPLEX RECEPTACLE, 1 STRAIGHT BLADE, COMMERCIAL GRADE

AD Description

Wiring Device-Kellems CR15GRY Commercial Duplex Standard Straight Blade Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Gray

Specifications

Amperage Rating
15
Application
Commercial Specification Grade
Brand Name
Hubbell
Color
Gray
Connection
Side Wired Only
Conductor Size
#14 AWG to #12 AWG
Country of Origin
CN
Dielectric_Strength
Withstands 2,000V minimum
Environmental_Conditions
Indoor Dry unless Protected by Additional Means
Grade
Commercial
Material
Thermoplastic/Composite
Mounting
Screw Mount
NEMA_Configuration
5-15R
NEMA_Rating
5-15R
Number_Of_Poles
2-Pole
Number_Of_Wires
3-Wire Grounding
Phase
Single
Size
Standard Sized Product
Special Features

  • #8-32 brass, multiple drive terminal/ground screw
  • 0.031 in phosphor bronze power contact
  • 0.032 in steel wire auto ground clip
  • 0.04 in galvanized steel mounting strap
  • 14 to 10 AWG copper stranded or solid conductor only terminal accommodation
  • Certified for current interrupting at full rated current
  • Easy access split circuit tab
  • Fork terminal capable
  • Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%
  • Nylon top and base
  • Ratings are a permanent part of the device
  • Smooth face, traditional shape
  • Steel-zinc plated mounting screw
  • Terminals identified in accordance with UL498
  • Triple wipe contacts
  • Withstands 2000 VAC minimum dielectric voltage
Standard
NEMA WD1 and WD5, UL 498
Sub_Brand
Hubbell Wiring Device-Kellems
Type
Duplex
Voltage Rating
125
Wattage
1875Watts
