Hubbell Hubbell HBL7484
Hubbell HBL7484
Kirby Risk #: 489457
UPC: 78358523738, 783585237381, 00783585237381
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description

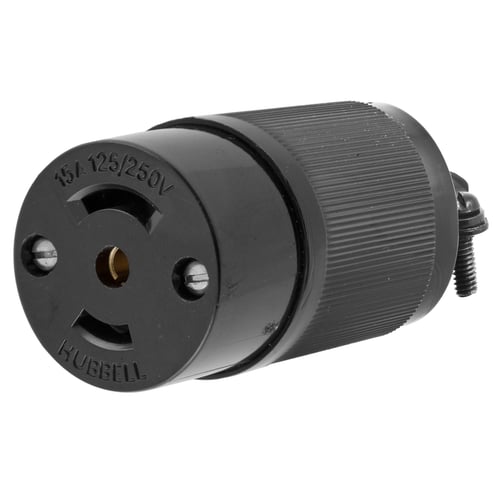

Hubbell Wiring Device Kellems, Locking Devices, Midget TwistLock,Industrial, Female Connector, 15A 125/250V, 3-Pole 3-Wire Non Grounding,ML-3R, Screw Terminal, Black
Modified Industry Description
15A 125/250V - LOCKING Female Connector, 3 Pole, 3 Wire
AD Description
Wiring Device-Kellems Twist-Lock® HBL7484 Heavy Duty Isolated Non-Grounding Midget Locking Standard Female Connector
Specifications
| Amperage Rating |
15
|
|---|---|
| Application |
Heavy Duty Industrial
|
| Brand Name |
Hubbell
|
| Color |
Black
|
| Conductor Range |
#14AWG - #12AWG
|
| Connection |
Pressure Screw Terminal
|
| Country of Origin |
US
|
| Environmental_Conditions |
Indoor Dry unless Protected by Additional Means
|
| Material |
Composite
|
| Mounting |
Cord Mounted
|
| NEMA_Configuration |
ML-3R
|
| NEMA_Rating |
ML-3R
|
| Number Of Conductors |
3-Wire Non-Grounding
|
| Number_Of_Poles |
3
|
| Number_Of_Wires |
3
|
| Poles |
3
|
| Size |
Midget Locking
|
| Special Features |
|
| Standard |
NEMA WD1 and WD5, UL498
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Temperature_Rating |
Maximum Continuous: 75 DEG C; Minimum Continuous: -40 DEG C w/o impact, -25DEG with impact.
|
| Type |
Standard
|
| Voltage Rating |
125/250
|
