Bussmann Bussmann ATM-10


Description

Industry Description

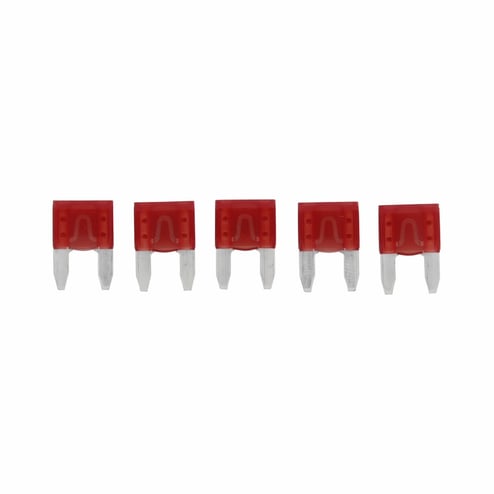

10A 32VDC Automotive Mini Blade-Type Fuse

Modified Industry Description

10A 32V DC - AUTOMOTIVE FUSE , MINI BLADE

AD Description

Bussmann® ATM-10 Non-Indicating Non-Rejection Fast Acting Miniature Fuse, 32 VAC/VDC, 10 A, 1 kA

Vendor Description

The ATM, ATC™ and MAXI fuses use the same universal color-coding as traditional non-illuminating fuses. Illuminating fuse holders allow adding circuits with EasyID, but use regular ATM and ATC blade fuses.

Specifications

Amperage Rating
10
Application
Automotive
Brand Name
Bussmann
Color
Red
Connection
Blade End
Country of Origin
MUL
Interrupt_Rating
1000 Amp
Material
Colored Plastic Housing, Zinc Fuse Element
Model
ATM
Package_Quantity
5
Size
0.430 In Width X 0.15 In Depth X 0.606 In Height
Special Features

  • -40 to 100 deg C, 95 % RH non-condensing is operating temperature
  • -5 to 35 deg C or lower, 85 % RH non-condensing is storage temperature
  • A range of UL® listed fast acting miniature blade fuses for automotive and low voltage circuits
  • ATM fuses feature an enclosed element for electrical isolation, corrosion resistance and longer service life
  • Halogen free
  • Industry standard color coded by amperage rating
  • Industry standard color coding for quick identification of amp rating
  • Mount with fuse clip or holder
  • Silver-plated zinc terminals and element, polycarbonate housing materials
  • Test points on fuses to speed troubleshooting
  • Test points on specific part/package numbers may speed up circuit troubleshooting
Standard
Contact factory,RoHS Compliant
Sub_Brand
Cooper Bussmann
Type_Of_Indicators
Non-Indicating
Type
Fast Acting
Voltage Rating
32 DC
