Hubbell Hubbell HBL3226
Hubbell HBL3226
Kirby Risk #: 489196
UPC: 78358523629, 783585236292, 00783585236292
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description

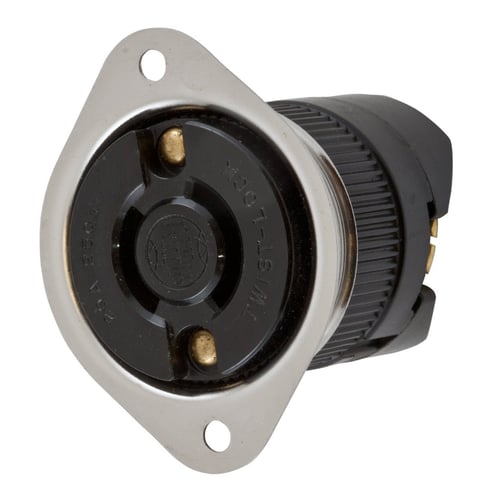

Hubbell Wiring Device Kellems, Locking Devices, TwistLock, Industrial,Flanged Receptacle, 20A 250V, 2-Pole 2-Wire Non Grounding, L2-20R, ScrewTerminal, Steel
Modified Industry Description
20A 250V - STEEL FLANGED RECEPTACLE, 2 POLE, 2 WIRE
AD Description
Wiring Device-Kellems Insulgrip® HBL3226 1-Phase Flanged Non-Grounding Single Standard Locking Receptacle, 250 VAC, 20 A, 2 Poles, 2 Wires, White
Specifications
| Amperage Rating |
20
|
|---|---|
| Application |
Insulgrip
|
| Brand Name |
Hubbell
|
| Color |
White
|
| Connection |
Screw Terminal
|
| Conductor Size |
#14 AWG
|
| Country of Origin |
US
|
| Dielectric_Strength |
Withstands 2,000V minimum
|
| Environmental_Conditions |
Indoor Dry unless Protected by Additional Means
|
| Material |
Thermoplastic/Composite
|
| Mounting |
Flanged
|
| NEMA_Configuration |
L2-20R
|
| NEMA_Rating |
L2-20R
|
| Number_Of_Poles |
2
|
| Number_Of_Wires |
2
|
| Phase |
Single
|
| Poles |
2
|
| Size |
Standard Sized
|
| Special Features |
|
| Standard |
NEMA WD1 and WD5, UL 498
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Type |
Single
|
| Voltage Rating |
250
|
| Wattage |
5000Watts
|
