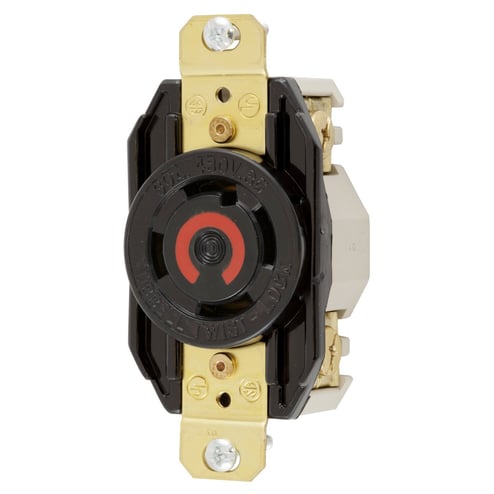

Hubbell Hubbell HBL2730


Description

Industry Description

Hubbell Wiring Device Kellems, Locking Devices, TwistLock, Industrial,Flush Receptacle, 30A 3-Phase Delta 480V AC, 3-Pole 4-Wire Grounding,L16-30R, Screw Terminal, Black

Modified Industry Description

30A 480V - BLACK LOCKING Flush Receptacle, 3 Pole, 4 Wire

AD Description

Wiring Device-Kellems Twist-Lock® Insulgrip® HBL2730 3-Phase Grounding Standard Locking Receptacle, 480 VAC, 30 A, 3 Poles, 4 Wires, Black

Specifications

Amperage Rating
30
Application
Heavy Duty Industrial
Brand Name
Hubbell
Color
Black
Connection
Screw Terminal
Conductor Size
#12 AWG to #8 AWG
Country of Origin
US
Enclosure
IP20
Environmental_Conditions
Indoor Dry unless Protected by Additional Means
Grade
Industrial
Material
Composite/Thermoplastic
Mounting
Screw Mount
NEMA_Configuration
L16-30R
NEMA_Rating
NEMA L16-30R/WD1/WD5
Number_Of_Poles
3
Number_Of_Wires
4
Phase
Three
Poles
3
Size
Standard Sized
Special Features

  • 12 to 8 AWG wire
  • All brass mounting and grounding system provides a lower resistance ground path and greater resistance to corrosion than steel mounting systems
  • Face color coding by voltage facilitates locating and mating of proper devices
  • Flush mount
  • High impact, abuse resistant nylon face
  • Indoor dry unless protected by additional means
  • IP20 suitability moisture resistance
  • Nylon face, glass reinforced thermoplastic polyester (RTP) base, brass contacts/mounting strap, no 10 - 32 brass terminal screws
  • Screw mount
  • Wire restraint recess for both back and side wiring, greatly reduces the possibility of loosening the terminal connection
  • Withstands 2000 VAC minimum dielectric voltage
Standard
NEMA WD1 and WD5, UL 498
Sub_Brand
Hubbell Wiring Device-Kellems
Temperature_Rating
-40 to 75
Type
3-Phase Grounding Standard
Voltage Rating
480
Wattage
14400Watts
