Hubbell Hubbell HBL2420
Hubbell HBL2420
Kirby Risk #: 488921
UPC: 78358523575, 783585235752, 00783585235752
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description
Hubbell Wiring Device Kellems, Locking Devices, TwistLock, Industrial,Flush Receptacle, 20A 3 Phase Delta 250V AC, 3-Pole 4-Wire Grounding,L15-20R, Screw Terminal, Black
Modified Industry Description
20A 250V - BLACK LOCKING Flush Receptacle, 3 Pole, 4 Wire
AD Description

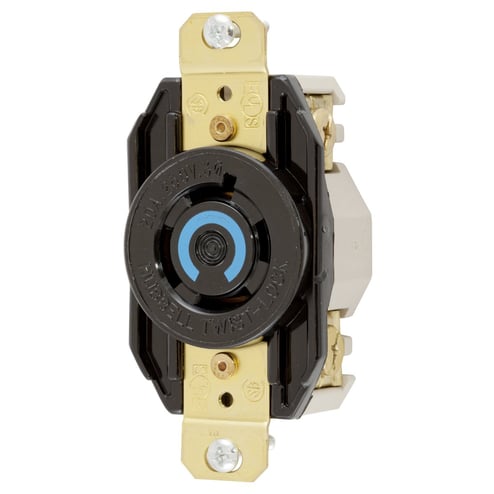

Wiring Device-Kellems Twist-Lock® HBL2420 Grounding Heavy Duty Single Locking Receptacle, 250 VAC, 20 A, 3 Poles, 4 Wires, Black
Specifications
| Amperage Rating |
20
|
|---|---|
| Application |
Heavy Duty Industrial
|
| Brand Name |
Hubbell
|
| Color |
Black
|
| Connection |
Screw Terminal
|
| Conductor Size |
#14 AWG to #8 AWG
|
| Country of Origin |
US
|
| Dielectric_Strength |
Withstands 2,000V minimum
|
| Enclosure |
NEMA 4/4X/12/IP20
|
| Environmental_Conditions |
Indoor Dry unless Protected by Additional Means
|
| Grade |
Industrial
|
| Material |
Composite/Thermoplastic
|
| Mounting |
Screw Mount
|
| NEMA_Configuration |
L15-20R
|
| NEMA_Rating |
NEMA L15-20R
|
| Number_Of_Poles |
3
|
| Number_Of_Wires |
4
|
| Phase |
Three
|
| Poles |
3
|
| Size |
Standard Sized
|
| Special Features |
|
| Standard |
NEMA WD1 and WD5, UL 498
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Temperature_Rating |
-40 to 75
|
| Type |
Grounding Heavy Duty Single
|
| Voltage Rating |
250
|
| Wattage |
5000Watts
|
