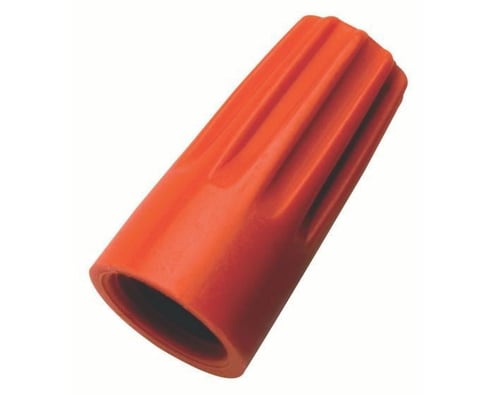

Ideal Ideal 30-273


Description

Industry Description

IDEAL, Wire Connector, Wire-Nut®, Twist-On, Number Of Conductors: 1 to 5, Conductor Range: 22 - 14 AWG, Min 1-18 w/2-20 MAX 2-14, Color: Orange, Material: Flame-retardant polypropelene, Voltage Rating: 600 V, Environmental Conditions: Tough, UL 94V-2 Flame-Retardant Shell Rated At 105 DEG C (221 DEG F), Model Number: 73B, Flammability Rating: UL 94V-2

Modified Industry Description

22 TO 14 AWG ORANGE WIRE NUT, FLAME RETARDANT

AD Description

IDEAL® WIRE-NUT® 30-273 73B® Flame-Retardant Wire Connector, Twist-On Shell, Fixed/Square Wire Spring, 22 to 14 AWG Solid/Stranded Copper Wire, Polypropylene

Vendor Description

WIRE-NUT® is perfect to twist-on with fingers for a secure connection that will last. The refined wire range makes it the best choice for fine stranded wire applications. The WIRE-NUT® also features a tough, flame retardant thermoplastic shell that withstands environmental extremes and is reusable for easy circuit changes and addition.

Specifications

Application
Insulating or Joining 2 or more conductors
Brand Name
Ideal
Color
Orange
Conductor Range
22 - 14 AWG, Min 1-18 w/2-20 MAX 2-14
Country of Origin
USA
Finish
Zinc Plated
Material
Flame-retardant Polypropelene
Number Of Conductors
1 to 5
Package_Quantity
500
Special Features

  • Deep skirt helps protect against flash over and turned back strands for maximum dielectric protection
  • Fixed, square wire spring creates its own threads maintains a secure positive grip that will not relax over time
  • For tough environmental conditions
  • No pre-twisting required, positive grip design provides fast and easy installation
  • Reusable for easy circuit changes and additions
Standard
CSA Certified to C22.2 #188, UL Listed to 486C, complies with Federal Specification W-S-610E
Sub_Brand
Wire-Nut®
Temperature_Rating
221
Type
Wire Nut
Voltage Rating
600
Wire_Type
Solid/Stranded Copper
