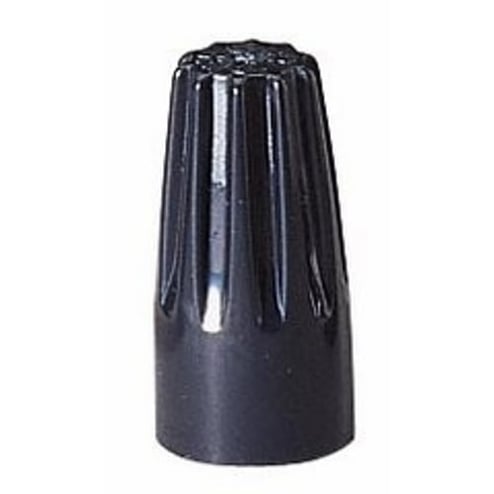

Ideal Ideal 30-153


Description

Industry Description

IDEAL, Wire Connector, Wire-Nut, High Temperature Twist-On, Number Of Conductors: 1 to 5, Conductor Range: 22 - 14 AWG, Min 1 -18 w/ 1-20, MAX 4-16 w/ 1-20, Material: THERMOPLASTIC POLYESTER, Color: Black, Voltage Rating: 600 V, Environmental Conditions: Tough, UL 94V-0 Flame-Retardant Shell Rated At 150 DEG C (302 F), Model Number: 73B, Width: 7/16 IN, Height: 55/64 IN

Modified Industry Description

WIRENUT 73B BLACK

AD Description

IDEAL® Wire-Nut® 30-153 73B High Temperature Flame Retardant Twist-On Wire Connector, Fixed/Square Wire Spring, 22 to 14 AWG Aluminum/Copper Wire, Steel Spring/Thermoplastic Polyester Shell

Vendor Description

Wire-Nut® is perfect to twist-on with fingers for a secure connection that will last. The refined wire range makes it the best choice for fine stranded wire applications. The Wire-Nut® also features a tough, flame-retardant thermoplastic shell that withstands environmental extremes and is reusable for easy circuit changes and addition.

Specifications

Application
Insulating or Joining 2 or more conductors in conditions where extreme heat buildup occurs such as high wattage fixtures and signs.
Brand Name
Ideal
Color
Black
Conductor Range
22 - 14 AWG, Min 1 -18 w/ 1-20, MAX 4-16 w/ 1-20
Country of Origin
USA
Finish
Zinc Plated
Material
Steel Spring/Thermoplastic Polyester Shell
Number Of Conductors
1 to 5
Package_Quantity
1000
Special Features

  • 1 - 5 conductors, (1) 18 AWG with (1) 20AWG - (2) 14 AWG wire combinations
  • 1000/Carton
  • 4 color coded models
  • Black, thermoplastic shell specially designed to withstand the extreme heat build-up commonly found in high-wattage light fixtures and signs
  • Deep skirt helps protect against flash-over
  • Fixed, square-wire spring creates its own threads maintains a secure positive grip that will not relax over time
  • For tough environmental conditions
  • No pre-twisting required-positive grip design provides fast, easy installation
  • Reusable for easy circuit changes and additions
  • Welded one-piece spring/shell for added reliability
Standard
CSA Certified to C22.2 #188, UL Listed to 486C
Sub_Brand
Ideal
Temperature_Rating
150
Type
High Temperature Flame Retardant
Voltage Rating
600
Wire_Type
Aluminum/Copper
